66100-9
Type III + Series Size 16 Female CrimpCircular Connector Contact | TE Connectivity 66100-9
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 66100-9 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

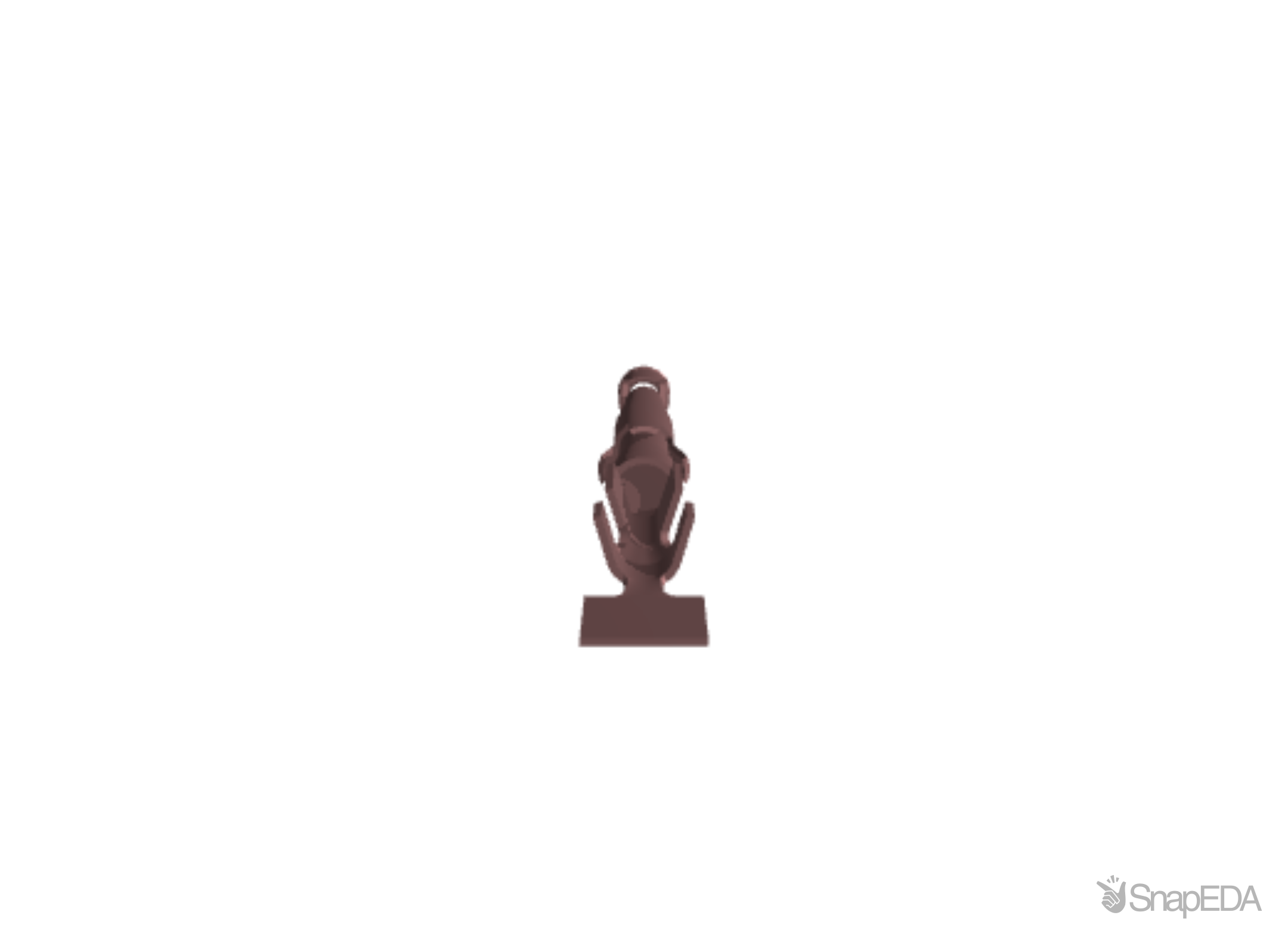

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 66100-9
| Part Name | 66100-9 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Underplate Material Thickness | .76 |
| Circuit Application | Power & Signal |
| Contact Termination Area Plating Finish | Matte |
| Wire/Cable Type | Discrete Wire |
| For Use With | G Series Connectors |
| Connector & Contact Terminates To | Wire & Cable |
| Test Current (A) | 13 |
| TE Internal Number | 66100-9 |
| Contact Underplating Material | Nickel |
| Product Type | Contact |
| Wire Insulation Support | With |
| Contact Size | 16 |
| Operating Temperature Range | -67 – 194 |
| Packaging Method | Reel |
| Packaging Quantity | 4000 |
| Contact Termination Area Plating Material | Tin |
| 端子の下地めっきの材料 | Nickel |
| Accepts Wire Insulation Diameter Range | 2.03 – 2.54 |
| Contact Mating Area Plating Material | Gold |
| RoHS | True |
| Life Cycle Status | End of Life |
| Contact Base Material | Brass |
| Contact Current Rating (Max) (A) | 13 |
| Contact Mating Area Plating Thickness | 30 |
| Termination Type | Crimp |
| Mating Pin Diameter | .062 |
| Contact Type | Socket |
| Contact Termination Area Plating Thickness | 50 |
| Wire Size | 18 – 16 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | |
| Contact Size | 16 |
| Mounting Type | Cable Mount |
| Series | Type III + |
| Termination Method | Crimp |
| Contact Plating | Gold over Nickel |
| Gender | Female |
| Contact Material | Brass |
