7-1415537-6
Industrial Relays (General Purpose)
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 7-1415537-6 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

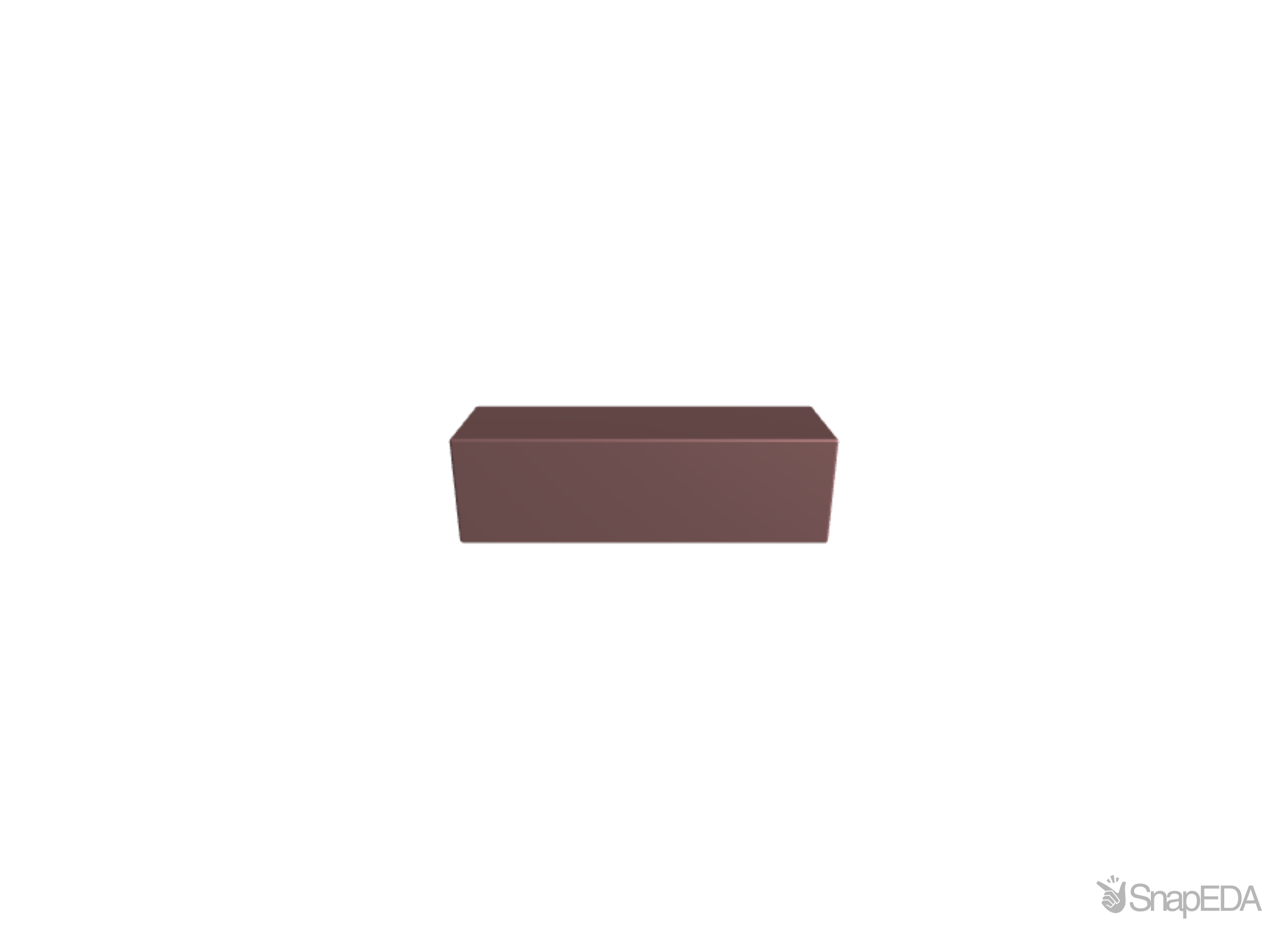

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 7-1415537-6
| Part Name | 7-1415537-6 |
| Manufacturer | TE Connectivity |
| Insulation Initial Dielectric Between Contacts & Coil | 4000 |
| Product Weight | 1.058 |
| Contact Plating Material | Gold Flash |
| Contact Limiting Making Current (A) | 8 |
| Height Class (Mechanical) | 16 – 20 |
| Product Width | .65 |
| Contact Material | AgSnO2 |
| Coil Power Rating DC | 800 |
| Contact Limiting Continuous Current (A) | 8 |
| Contact Switching Voltage (Max) (V) | 400 |
| Coil Resistance | 180 |
| Coil Current (A) | 66.67 |
| Contact Arrangement | 4 Form A (NO) + 2 Form B (NC) |
| Contact Number of Poles | 6 |
| Insulation Clearance Between Contact & Coil | 5.5 |
| TE Internal Number | 7-1415537-6 |
| Product Height | 16.5 |
| Insulation Initial Dielectric Between Coil & Contact Class | 3500 – 4000 |
| Contact Special Features | Force Guided Contacts |
| Width Class (Mechanical) | 16 – 20 |
| Terminal Type | PCB-THT |
| Relay Mounting Type | Printed Circuit Board |
| Product Length | 2.167 |
| Insulation Clearance Class | 5 – 8 |
| Coil Voltage Rating (V) | 12 |
| Packaging Method | Tube |
| Contact Current Class (A) | 5 – 10 |
| Environmental Ambient Temperature (Max) | 70 |
| Length Class (Mechanical) | 50 – 60 |
| Contact Switching Load (Min) | 10mA @ 5V |
| Power Relay Type | Force-Guided |
| Coil Magnetic System | Monostable, DC |
| RoHS | True |
| Environmental Ambient Temperature Class | -25 – 70 |
| Contact Voltage Rating (V) | 250 |
| Contact Limiting Short-Time Current (A) | 8 |
| Contact Limiting Breaking Current (A) | 8 |
| Coil Power Rating Class | 600 – 800 |
| Contact Current Rating (Max) (A) | 8 |
| Insulation Initial Dielectric Between Adjacent Contacts | 3000 |
| Insulation Creepage Between Contact & Coil | 5.5 |
| Environmental Category of Protection | RTIII |
| Insulation Initial Dielectric Between Open Contacts | 1500 |
| Insulation Creepage Class | 3 – 5.5 |
