770988-3
Universal Mate-N-Lok crimp socket contact .163" Centerline, 600 V, 9.5 A max 22-18 awg.
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 770988-3 by TE Connectivity / AMP and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

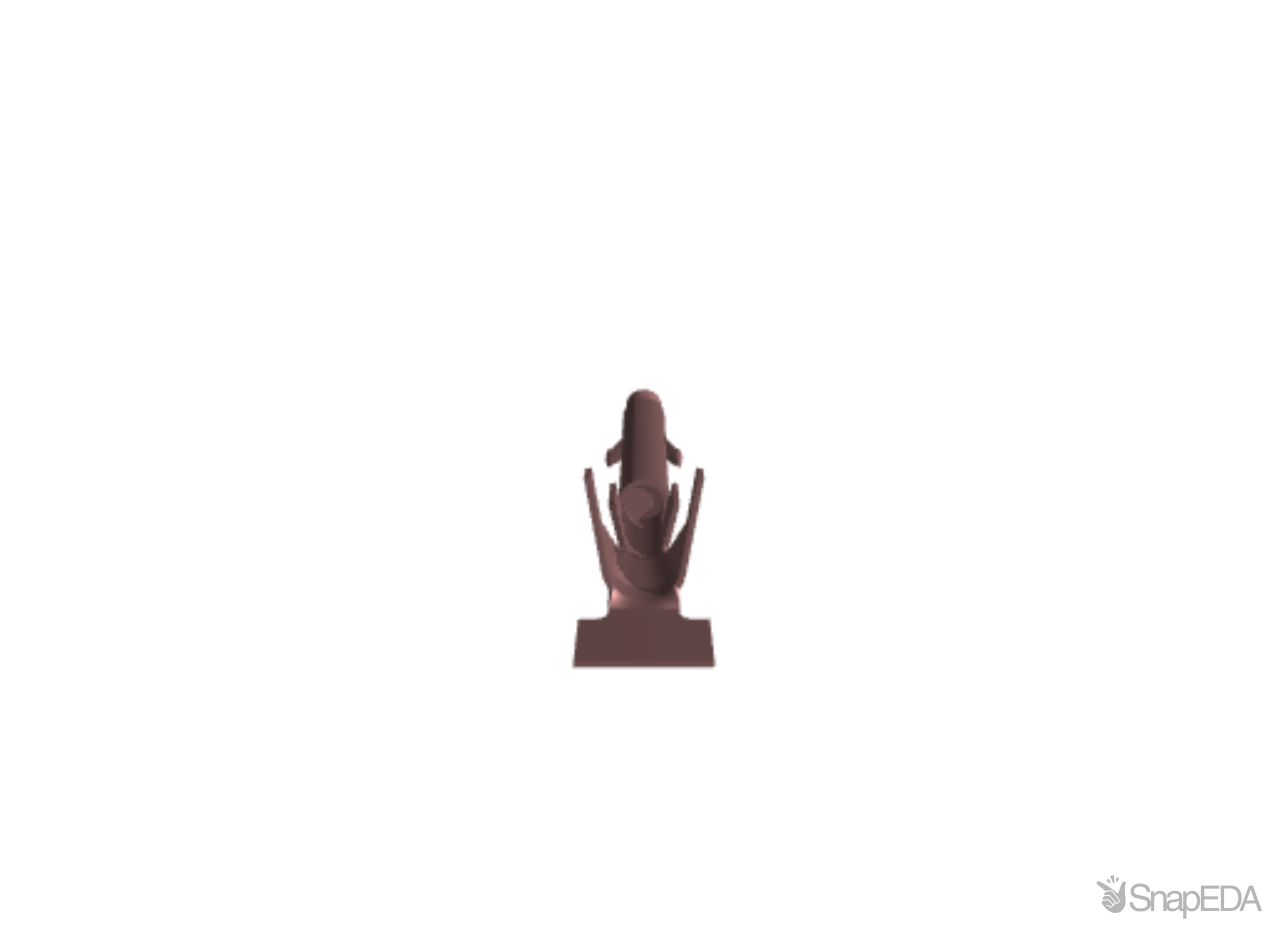

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 770988-3
| Part Name | 770988-3 |
| Manufacturer | TE Connectivity / AMP |
| Contact Retention Within Housing | With |
| Wire Type | Stranded |
| Circuit Application | Power |
| Underplate Material Thickness | 50 |
| Contact Termination Area Plating Thickness | 100 |
| Crimp Area Plating Thickness | 100 |
| Operating Voltage (V) | 600 |
| For Use With | Plug Housing |
| Connector & Contact Terminates To | Wire & Cable |
| Wire Contact Termination Area Plating Material | Tin-Lead |
| VDE Tested | No |
| Contact Current Rating (Max) (A) | 11.2 |
| TE Internal Number | 770988-3 |
| UL Rating | Recognized |
| Connector System | Wire-to-Wire |
| Contact Underplating Material | Nickel |
| Contact Orientation | Straight |
| Contact Base Material | Brass |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| UL File Number | E28476 |
| Operating Temperature Range | -67 – 221 |
| For Multiple Crimp | No |
| Packaging Method | Bag |
| Packaging Quantity | 1000 |
| Agency/Standard | UL |
| Contact Termination Area Plating Material | Tin-Lead |
| 端子の下地めっきの材料 | Nickel |
| Accepts Wire Insulation Diameter Range | .059 – .094 |
| Contact Mating Area Plating Material | Gold |
| CSA Rating | Certified |
| Product Type | Contact |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| Crimp Area Plating Finish | Bright |
| Wire Insulation Support | Without |
| CSA File Number | LR 7189 |
| Contact Mating Area Plating Thickness | 30 |
| Termination Type | Crimp |
| Mating Pin Diameter | .039 |
| Contact Type | Socket |
| Wire/Cable Type | Discrete Wire |
| Wire Size | .3 – .9 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Minimum Wire Size Mm | 0.3 (mm²) |
| Maximum Wire Size Mm | 0.9 (mm²) |
| Contact Plating | Gold |
| Series | Mini-Universal MATE-N-LOK |
| Termination Method | Crimp |
| Minimum Wire Size Awg | 22 (AWG) |
| Minimum Operating Temperature | -55 (°C) |
| Gender | Female |
| For Use With | Mini-Universal MATE-N-LOK Connector Housing |
| Maximum Wire Size Awg | 18 (AWG) |
| Maximum Operating Temperature | +105 (°C) |
| Contact Material | Brass |
