796634-8

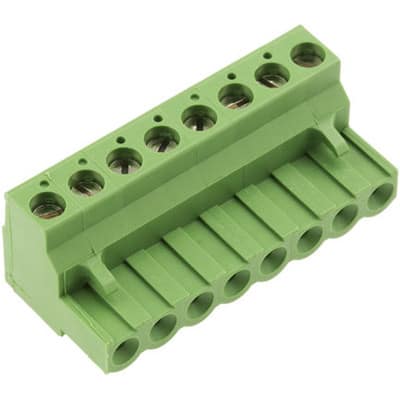

Conn; Term Blk; Plug; Screw; 8; 5.08mm; RightAngle; 30-12AWG; Green; 15A;300V;M3 | TE Connectivity 796634-8
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 796634-8 by TE Connectivity AMP Connectors and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 796634-8
| Part Name | 796634-8 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Centerline (Pitch) | .2 |
| Circuit Application | Power & Signal |
| Housing Material | PA 66 |
| Screw Plating Material | Nickel |
| Screw Flange | Without |
| Screw Size | M3 |
| Contact Mount | Through Hole |
| Connector Style | Plug |
| Connector & Contact Terminates To | Wire & Cable |
| Stacking Configuration | Side Stackable |
| Current Rating (Max) (A) | 15 |
| Screw Material | Brass |
| TE Internal Number | 796634-8 |
| Number of Positions | 8 |
| Connector System | Wire-to-Board |
| Screwless Terminal Block | No |
| Number of Rows | 1 |
| Housing Color | Green |
| Contact Base Material | Phosphor Bronze |
| Operating Temperature Range | -40 to 105 |
| Packaging Quantity | 100 |
| Stacked Levels | With |
| Contact Mating Area Plating Material | Tin |
| Mounting Angle | Right Angle |
| Interlock | Without |
| Wire Entry Angle | Side |
| Contact Current Rating (Max) (A) | 15 |
| Block Type | Stacking Plug |
| Voltage (V) | 300 |
| Mating Angle | 180 |
| Wire Size | .05 3 |
| Wire Protection | With |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Pitch | 5.08 (mm) |
| Wire Size | 30 → 12 AWG |
| Current Rating (A) | 15 (A) |
| Mounting Type | Cable Mount |
| Pluggable Terminal Block Type | Plug |
| Voltage Rating (V) | 300 V ac |
| Material | Nylon |
| Contact Plating | Tin |
| Termination Method | Screw Down |
| Number Of Contacts | 8 |
| Contact Material | Phosphor Bronze |
