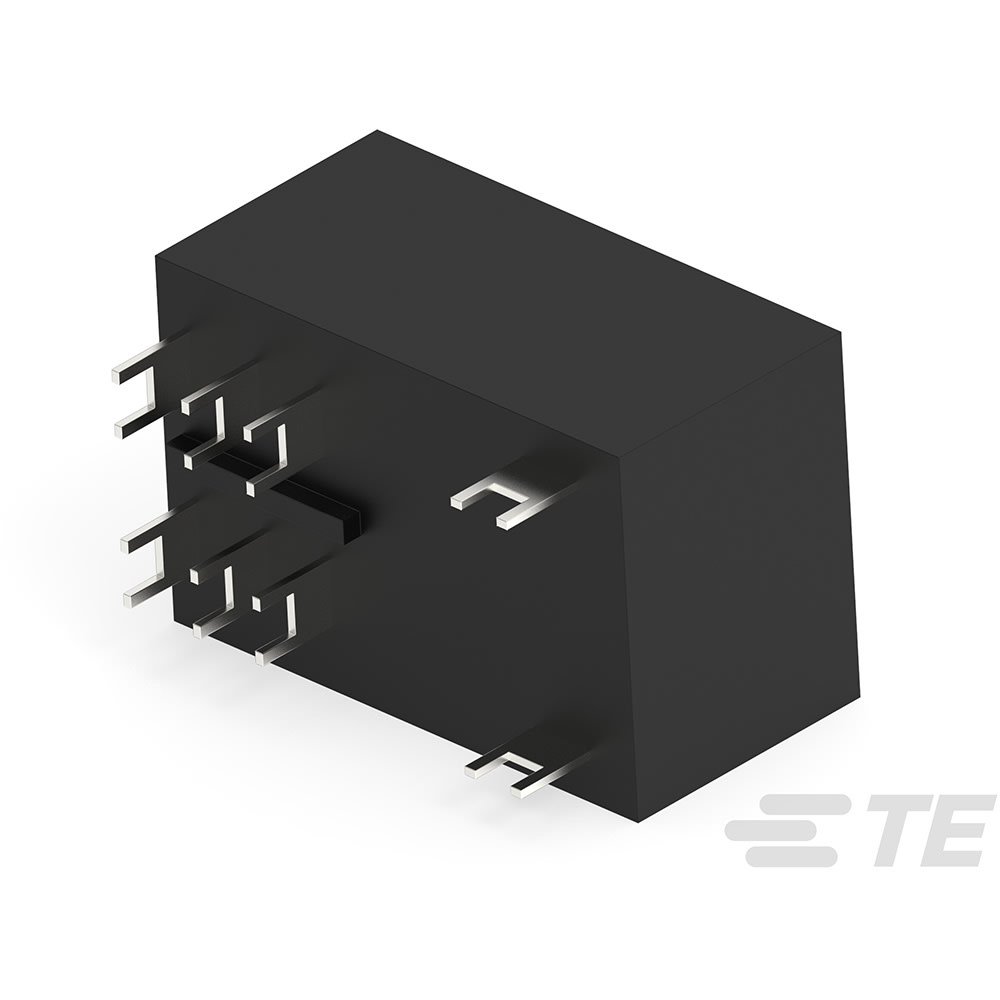

Relay, General Purpose, DPDT, 30A, 24VDC, Through-Hole, T9 Series, T92S11D12-24 | TE Connectivity 9-1393211-0
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 9-1393211-0 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 9-1393211-0
| Part Name | 9-1393211-0 |
| Manufacturer | TE Connectivity |
| Category | Relays |
| Insulation Initial Dielectric Between Contacts & Coil | 4000 |
| Product Weight | 3.034 |
| Coil Special Features | UL Coil Insulation Class F |
| Contact Limiting Making Current (A) | 40 |
| Height Class (Mechanical) | 30 – 40 |
| Product Width | 1.359 |
| Insulation Initial Resistance | 1000 |
| Coil Power Rating DC | 1700 |
| Contact Limiting Continuous Current (A) | 40 |
| Contact Switching Voltage (Max) (V) | 600 |
| Coil Resistance | 350 |
| Contact Current Class (A) | 20 – 30 |
| Contact Arrangement | 2 Form C (CO) |
| Contact Number of Poles | 2 |
| Insulation Clearance Between Contact & Coil | .315 |
| TE Internal Number | 9-1393211-0 |
| Product Height | 1.209 |
| Insulation Initial Dielectric Between Coil & Contact Class | 3500 – 4000 |
| Width Class (Mechanical) | 30 – 40 |
| Terminal Type | PCB-THT |
| Relay Mounting Type | Printed Circuit Board |
| Product Length | 2.059 |
| Insulation Clearance Class | 5 – 8 |
| Insulation Creepage Class | 8 |
| Coil Voltage Rating (V) | 24 |
| Packaging Method | Package |
| Environmental Ambient Temperature (Max) | 185 |
| Length Class (Mechanical) | 50 – 60 |
| Contact Switching Load (Min) | 500mA @ 12V |
| Insulation Special Features | 6000V Initial Surge Withstand Voltage between Contacts & Coil |
| Power Relay Type | Standard |
| Coil Magnetic System | Monostable, DC |
| RoHS | True |
| Environmental Ambient Temperature Class | 70 – 85 |
| Insulation Creepage Between Contact & Coil | .374 |
| Contact Limiting Short-Time Current (A) | 30 |
| Contact Limiting Breaking Current (A) | 40 |
| Coil Power Rating Class | 1500 |
| Contact Current Rating (Max) (A) | 30 |
| Insulation Initial Dielectric Between Adjacent Contacts | 2000 |
| Contact Voltage Rating (V) | 277 |
| Environmental Category of Protection | RTIII |
| Insulation Initial Dielectric Between Open Contacts | 1500 |
| Contact Material | AgCdO |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
