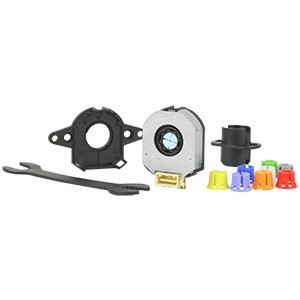

AMT213D-V
Right-Angle (Axial) Orientation, 14-Bit Multi-Turn Resolution, 2 Mbps Data Rate
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the AMT213D-V by Same Sky and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the AMT213D-V
| Part Name | AMT213D-V |
| Manufacturer | Same Sky |
| Resolution (PPR) | 16384, 4096 |
| Orientation | Axial |
| RoHS and REACH Link | https://www.cuidevices.com/product/resource/material-compliance/amt213d-v |
| Absolute Resolution | 14-bit multi-turn, 2 Mbps |
| Input Voltage (Vdc) (V) | 3.8 ~ 5.5 |
| Encoder Type | Absolute |
| Output Type | RS-485 |
| Package Type | Modular |
| Shaft (Bore) Ø (mm) | 2, 3, 3.175, 4, 4.76, 5, 6, 6.35, 8 |
| Special Features | Programmable Resolution |
| Operating Temp. (°C) | -40 ~ 105 |
| Speed, Max. (RPM) | 4000, 8000 |
