BCP68-25,115
Bipolar (BJT) Transistor NPN 20 V 2 A 170MHz 650 mW Surface Mount SOT-223
Availability: In Stock
Package Type: SC-73-4
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the BCP68-25,115 by Nexperia and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

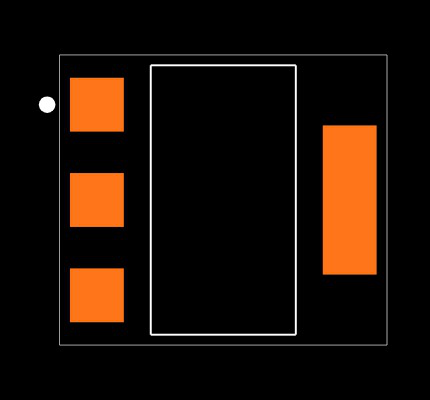

BuildFootprint
No web preview
This Footprint is Available for

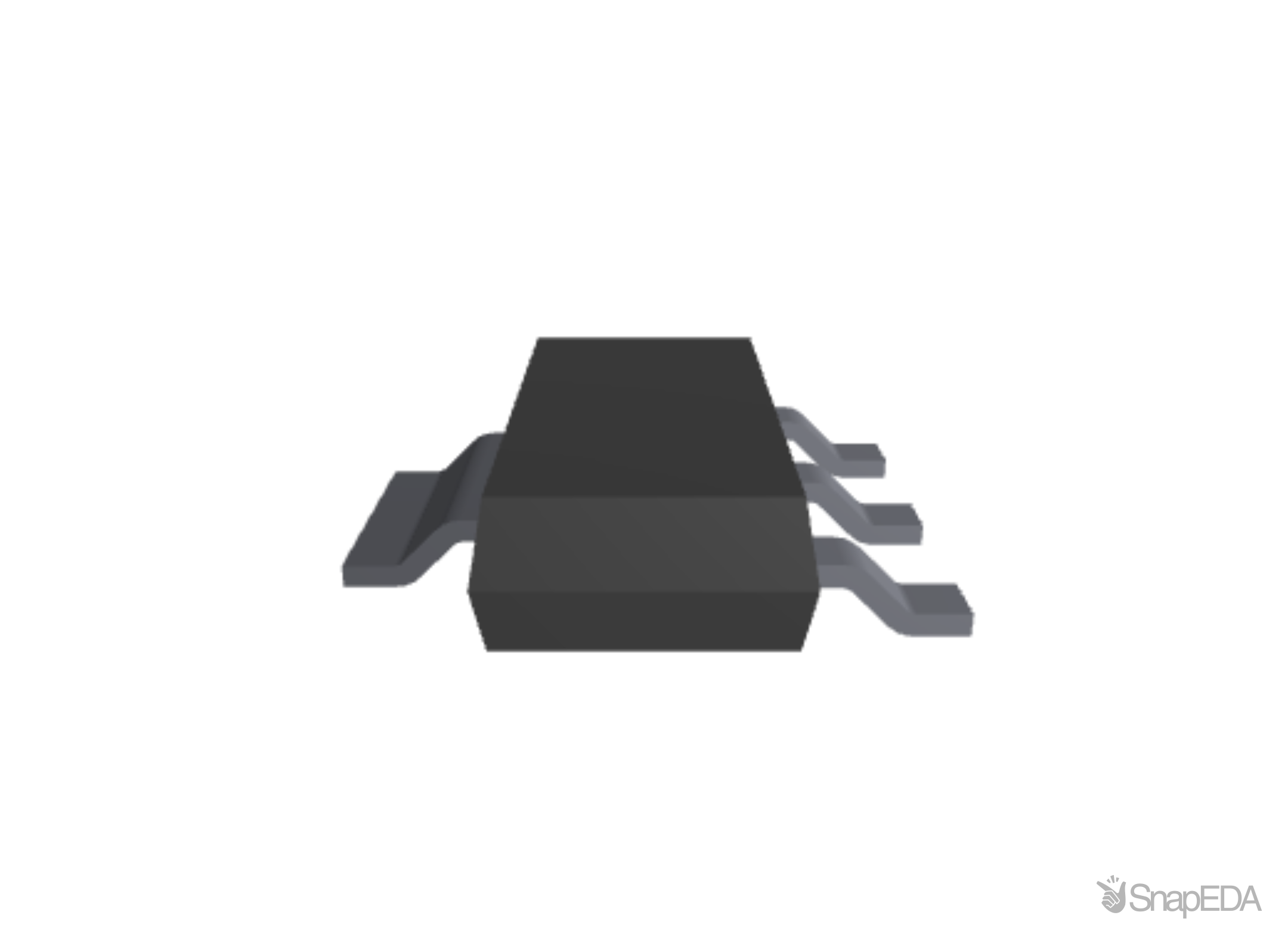

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the BCP68-25,115
| Part Name | BCP68-25,115 |
| Manufacturer | Nexperia |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Minimum Dc Current Gain (A) | 50 |
| Transistor Type | NPN |
| Dimensions | 1.7 x 6.7 x 3.7 (mm) |
| Maximum Collector Base Voltage (V) | 32 V |
| Maximum Power Dissipation | 1.4 W |
| Maximum Collector Emitter Voltage (V) | 20 V |
| Maximum Operating Frequency | 170 MHz |
| Maximum Emitter Base Voltage (V) | 5 V |
| Package Type | SOT-223 (SC-73) |
| Number Of Elements Per Chip | 1 |
| Maximum Dc Collector Current (A) | 2 A |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +150 °C |
| Pin Count | 4 |
| Transistor Configuration | Single |
