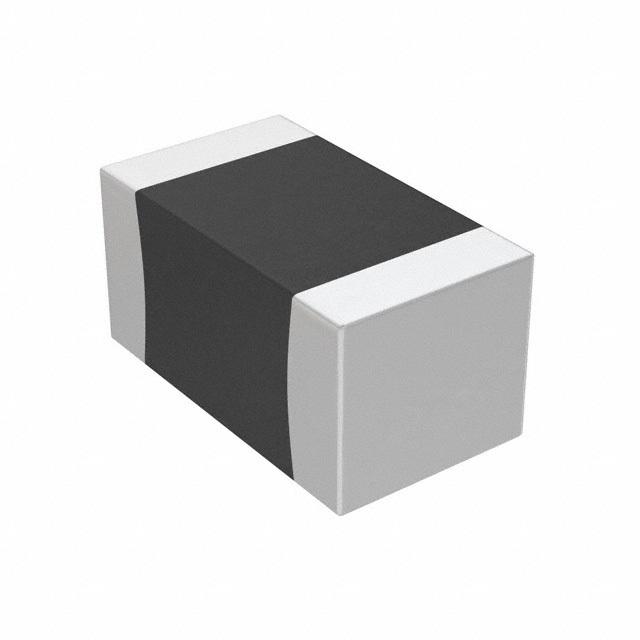

CC0603KRX7R9BB151
CAPACITOR, 0603, 150PF, 50V; Capacitor Application:General Purpose; Dielectric Characteristic:X7R; Capacitance:150pF; Capacitance Tolerance:± 10%; Voltage Rating:50V; Capacitor Case Style:0603; Capacitor Mounting:SMD; Operating Temperature Range:-55°C to +125°C; SVHC:No SVHC (15-Dec-2010); External Depth:0.8mm; External Length / Height:1.6mm; External Width:0.8mm; Insulation Resistance:100000Mohm; No. of Pins:2; Operating Temperature Max:125°C; Operating Temperature Min:-55°C; Package / Case:0603; Reel Quantity:4000; Temperature Coefficient:± 15%; Terminal Type:Surface Mount (SMD, SMT); Termination Type:SMD; Tolerance +:10%; Tolerance -:10%; Voltage Rating VDC:50V
Availability: In Stock
Package Type: 0603
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CC0603KRX7R9BB151 by Yageo and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
Verification | Issues | Specs |
Specifications for the CC0603KRX7R9BB151
Part Name | CC0603KRX7R9BB151 |
Manufacturer | Yageo |
Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
Inventory for the CC0603KRX7R9BB151 by Yageo from major distributors.
Supplier | Quantity | Price | Purchase | |
---|---|---|---|---|
★ Featured
|
20,000
|
|
Visit Site | |
Arrow Europe |
48,000
|
|
Visit Site | |
Avnet America |
|
|
Visit Site | |
Newark Electronics |
1,930
|
|
Visit Site | |
Verical |
48,000
|
|
Visit Site |
No issues have been reported for the CC0603KRX7R9BB151
