DF12(3.0)-14DP-0.5V(86)
SnapVerified

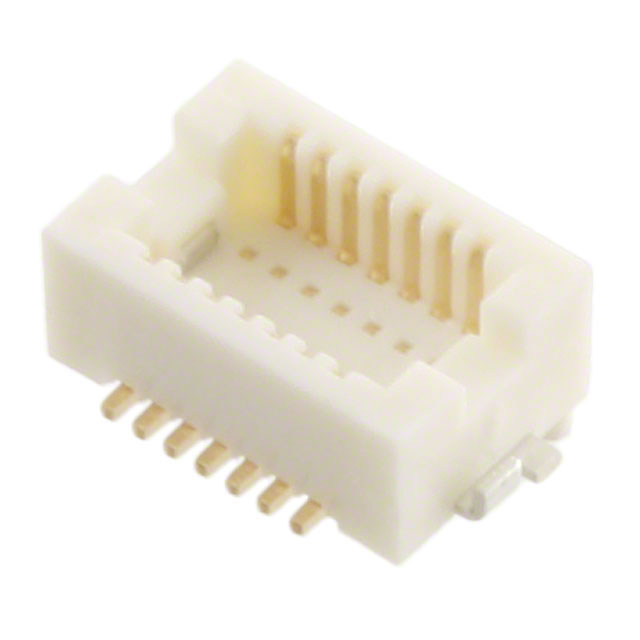

14 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the DF12(3.0)-14DP-0.5V(86) by Hirose and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the DF12(3.0)-14DP-0.5V(86)
| Part Name | DF12(3.0)-14DP-0.5V(86) |
| Manufacturer | Hirose |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Tail Pin Length | 1.6 (mm) |
| Current Rating (A) | 300.0 (mA) |
| Shrouded Unshrouded | Shrouded |
| Mounting Type | Surface Mount |
| Voltage Rating (V) | 50.0 V , 100.0 V dc, 150.0 V ac |
| Series | DF12 |
| Body Orientation | Straight |
| Pitch | 0.5 (mm) |
| Number Of Rows | 2 |
| Contact Plating | Gold |
| Termination Method | Solder |
| Mating Pin Length | 3.0 (mm) |
| Number Of Contacts | 14 |
| Contact Material | Phosphor Copper |
Inventory for the DF12(3.0)-14DP-0.5V(86) by Hirose from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
1,000 x $0.40
|
Visit Site | |
| Mouser |
|
N/A | Visit Site |
No issues have been reported for the DF12(3.0)-14DP-0.5V(86)
