EEUFR1V222

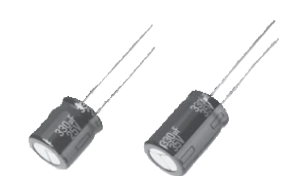

2200µF 35V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Availability: In Stock
Package Type: RADIAL-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the EEUFR1V222 by Panasonic and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the EEUFR1V222
| Part Name | EEUFR1V222 |
| Manufacturer | Panasonic |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Diameter | 16 (mm) |
| Dimensions | 16 x 25 (mm) |
| Mounting Type | Radial, Through Hole |
| Series | FR |
| Tolerance | ±20 (%) |
| Capacitance | 2200 (µF) |
| Length | 25 (mm) |
| Voltage (V) | 35 (V dc) |
| Lead Pitch | 7.5 (mm) |
| Maximum Operating Temperature | +105 (°C) |
| Polarised | Polar |
| Technology | Aluminium Electrolytic |
