FR01KR16P-S

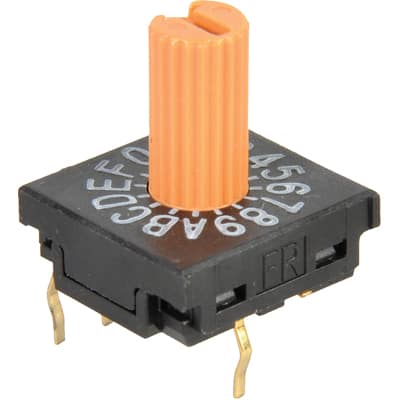

Switch,Dip Rotary,Plastic Shaft,Orng Actuator,Hexadecimal Pos,100mA,5VDC,Str PC | NKK Switches FR01KR16P-S
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the FR01KR16P-S by NKK Switches and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the FR01KR16P-S
| Part Name | FR01KR16P-S |
| Manufacturer | NKK Switches |
| Category | Switches |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Switch Positions | 16 |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 5 V dc, 50 (V dc) |
| Contact Current Rating (A) | 100 mA |
| Height | 10.8 (mm) |
| Width | 10 (mm) |
| Depth | 10 (mm) |
| Output Coding | Hexadecimal |
| Terminal Type | Solder |
