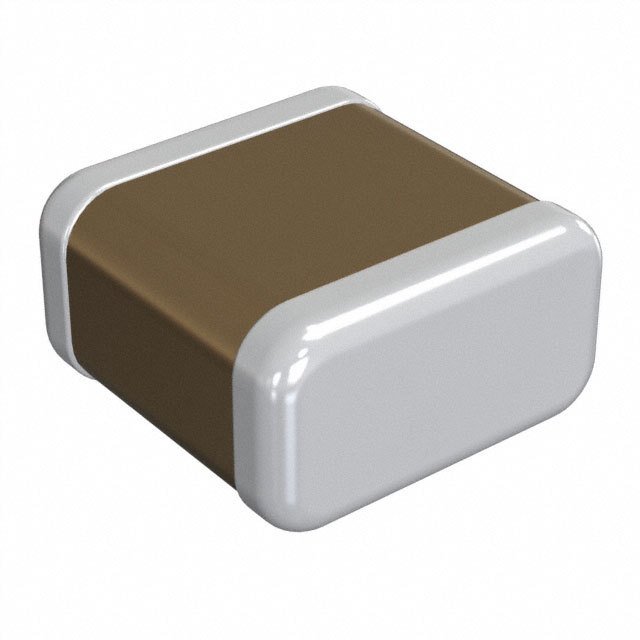

SMD Capacitor C0G(EIA) with Capacitance: 100pF Tol. 5%. Rated Voltage: 25Vdc
Package Type: 0603
CAD Models: Symbol, Footprint, 3D Model
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Specifications for the GRM0335C1E101JA01D
|Formats Available for
Symbols and Footprints
|Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus|
|Datasheet||See Datasheet PDF|
