IRM-30-5

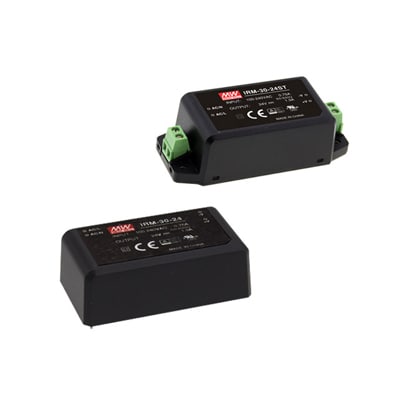

Power Supply, AC-DC, 5V,6A, 100-264V In, Encapsulated, PCB,Thru-Hole, HLG Series | MEAN WELL IRM-30-5
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the IRM-30-5 by Mean Well and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

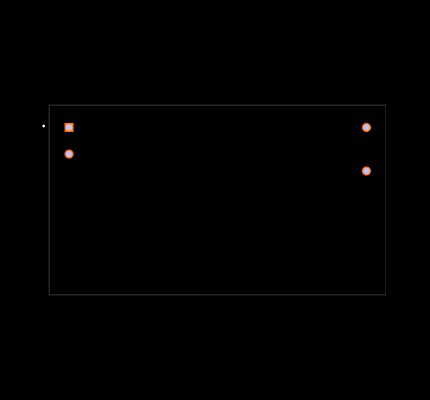

Footprint
No web preview
This Footprint is Available for

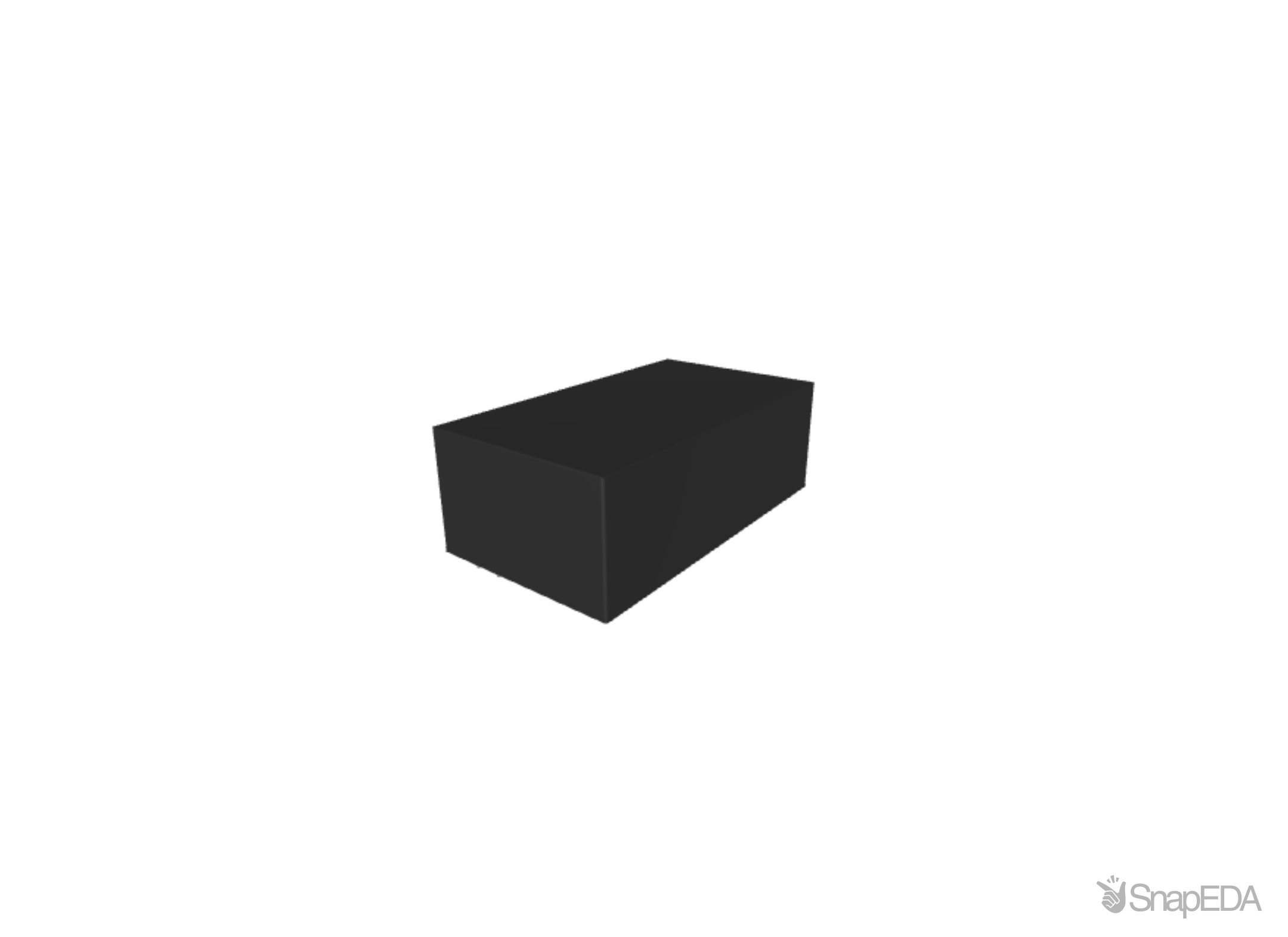

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the IRM-30-5
| Part Name | IRM-30-5 |
| Manufacturer | MEAN WELL |
| Category | Power Products |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Outputs | 1 |
| Maximum Temperature | +70 (°C) |
| Mounting Type | Chassis Mount |
| Weight | 120 (g) |
| Width | 39.5 (mm) |
| Minimum Temperature | -30 (°C) |
| Length | 91 (mm) |
| Input Voltage (V) | 85 → 264 (V ac) |
| Efficiency | 83 (%) |
| Depth | 28.5 (mm) |
| Output Voltage (V) | 5 (V dc) |
| Package Type | Encapsulated |
| Distrelec Product Id | 30060583 |
| Power Rating | 30 (W) |
| Output Current (A) | 6 (A) |
