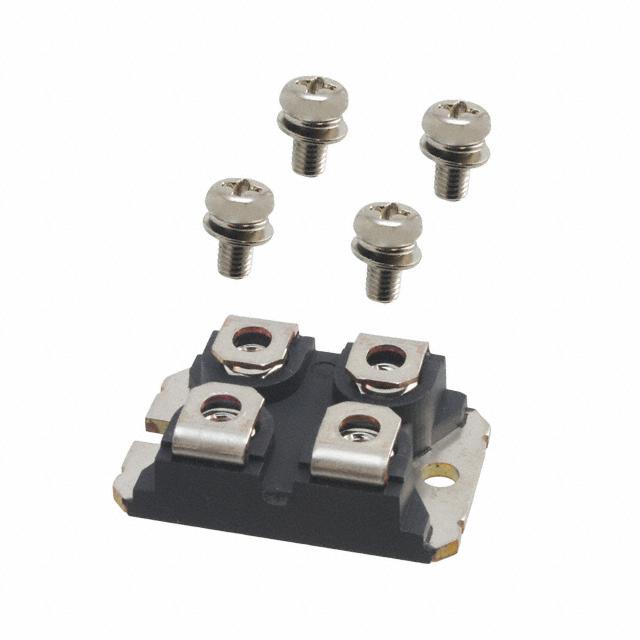

IXTN200N10L2
N-Channel 100 V 178A (Tc) 830W (Tc) Chassis Mount SOT-227B
Availability: In Stock
Package Type: SOT-227
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the IXTN200N10L2 by IXYS and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

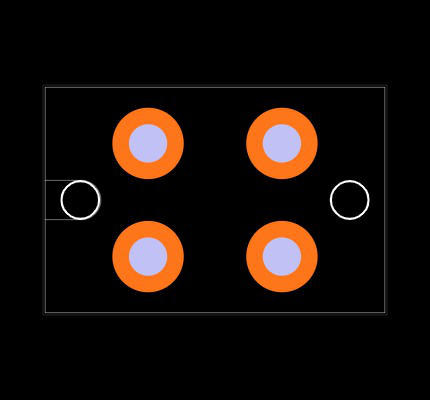

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the IXTN200N10L2
| Part Name | IXTN200N10L2 |
| Manufacturer | IXYS |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Pin Count | 4 |
| Maximum Drain Source Voltage (V) | 100 V |
| Typical Gate Charge @ Vgs | 540 nC @ 10 V |
| Width | 25.07 (mm) |
| Mounting Type | Screw Mount |
| Maximum Continuous Drain Current (A) | 178 A |
| Maximum Gate Source Voltage (V) | -20 V, +20 V |
| Series | Linear L2 |
| Maximum Power Dissipation | 830 W |
| Length | 38.23 (mm) |
| Height | 9.6 (mm) |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage (V) | 4.5 (V) |
| Package Type | SOT-227 |
| Number Of Elements Per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Minimum Gate Threshold Voltage (V) | 2 (V) |
| Forward Diode Voltage (V) | 1.4 (V) |
| Channel Type | N |
| Maximum Operating Temperature | +150 °C |
| Maximum Drain Source Resistance | 11 mΩ |
Inventory for the IXTN200N10L2 by IXYS from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
472
|
|
Visit Site | |
|
★ Featured
|
300
|
13 x $23.66
|
Visit Site |
No issues have been reported for the IXTN200N10L2
