KUHP-5D51-24
Electromechanical Relay 24VDC 472Ohm 30A SPDT(35.71x38.89x73.66)mm Bracket Industrial Relay
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the KUHP-5D51-24 by TE Connectivity / P&B and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

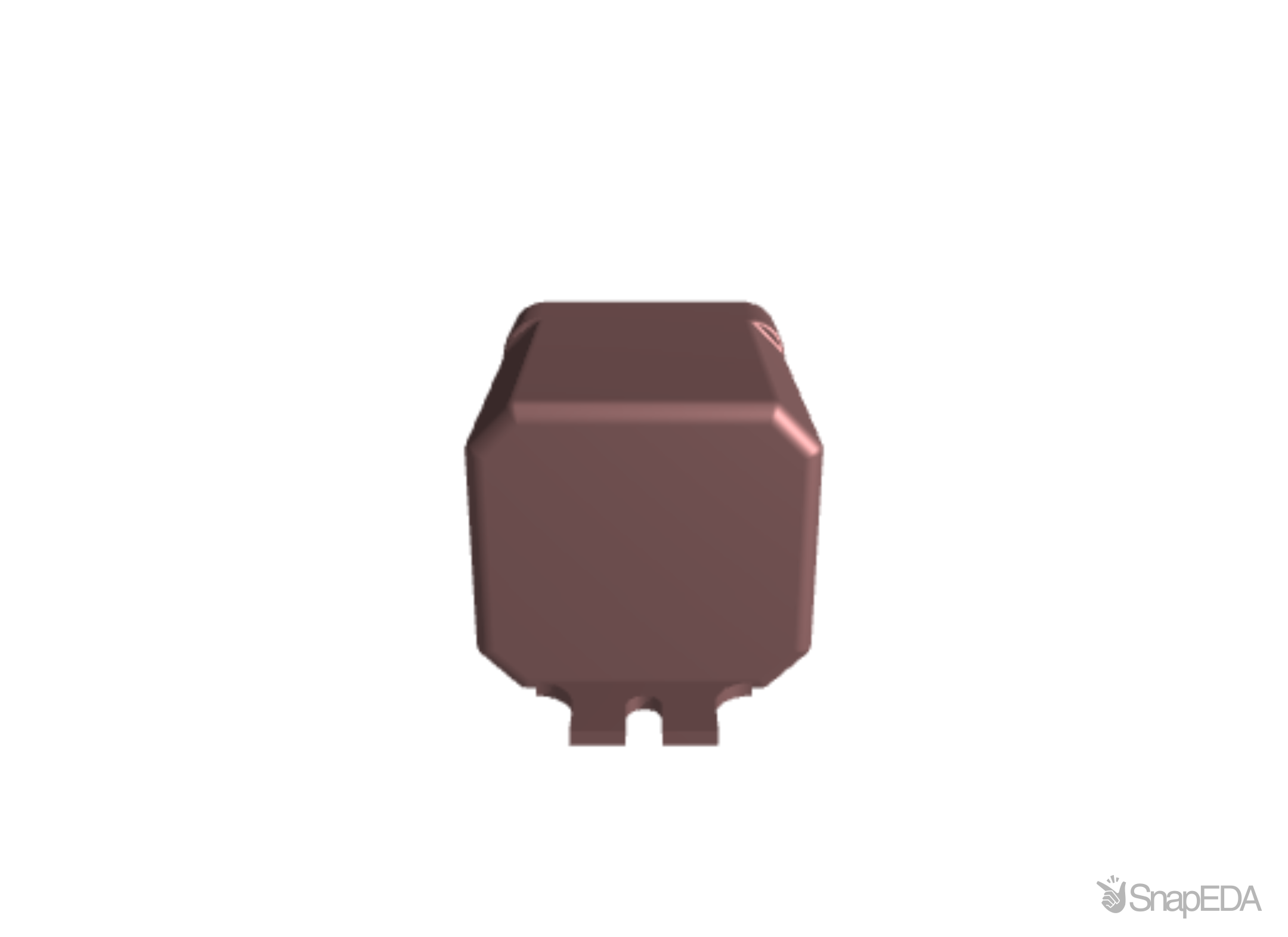

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the KUHP-5D51-24
| Part Name | KUHP-5D51-24 |
| Manufacturer | TE Connectivity / P&B |
| Insulation Initial Dielectric Between Contacts & Coil | 3750 |
| Product Weight | 3.245 |
| Coil Special Features | UL Coil Insulation Class B |
| Contact Limiting Making Current (A) | 30 |
| Height Class (Mechanical) | 30 – 40 |
| Product Width | 1.531 |
| Insulation Initial Resistance | 100 |
| Coil Power Rating DC | 1230 |
| Contact Limiting Continuous Current (A) | 30 |
| Coil Resistance | 472 |
| Contact Current Class (A) | 20 – 30 |
| Contact Arrangement | 1 Form C (CO) |
| Contact Number of Poles | 1 |
| TE Internal Number | 9-1393114-1 |
| Product Height | 1.405 |
| Insulation Initial Dielectric Between Coil & Contact Class | 3500 – 4000 |
| Width Class (Mechanical) | 30 – 40 |
| Terminal Type | Quick Connect |
| Relay Mounting Type | Panel Mount |
| Product Length | 50 |
| Operating Temperature Range | -45 – 70 |
| Coil Voltage Rating (V) | 24 |
| Packaging Method | Package |
| Environmental Ambient Temperature (Max) | 70 |
| Contact Switching Load (Min) | 300mA @ 12V |
| Power Relay Type | Industrial Panel Plug-In |
| Coil Magnetic System | Monostable, DC |
| Actuating System | DC |
| Environmental Ambient Temperature Class | 50 – 70 |
| Length Class (Mechanical) | 40 – 50 |
| Contact Limiting Short-Time Current (A) | 30 |
| Contact Limiting Breaking Current (A) | 30 |
| Coil Power Rating Class | 1000 – 1500 |
| Contact Current Rating (Max) (A) | 30 |
| Insulation Initial Dielectric Between Adjacent Contacts | 3750 |
| Contact Voltage Rating (V) | 240 |
| Environmental Category of Protection | RTI |
| Insulation Initial Dielectric Between Open Contacts | 1200 |
| Contact Material | AgCdO |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
