MC7805CD2TG
Linear Voltage Regulator IC Positive Fixed 1 Output 1A D2PAK-3
Availability: Out of Stock
Package Type: D2PAK-3
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MC7805CD2TG by Onsemi and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

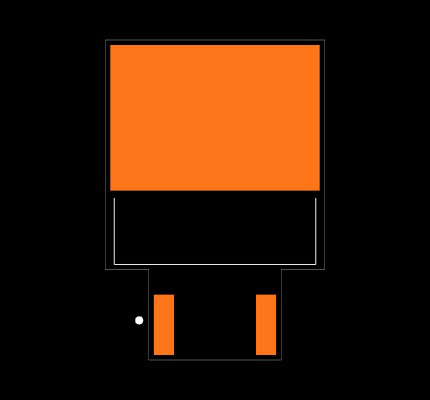

Footprint
No web preview
This Footprint is Available for

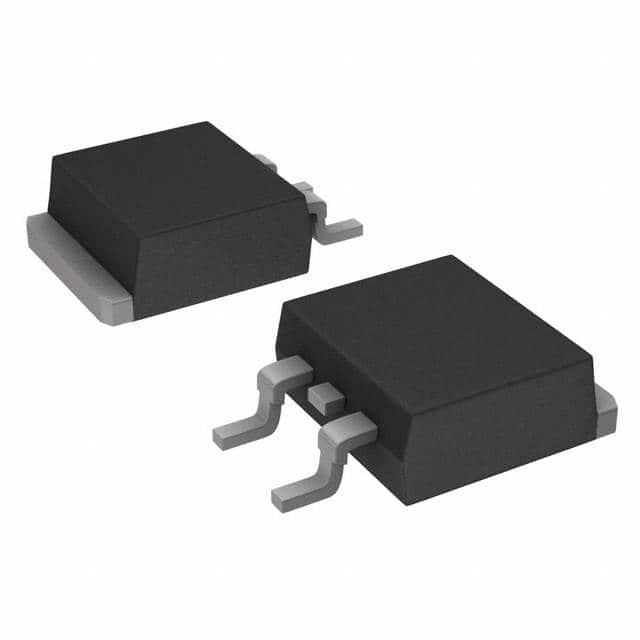

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MC7805CD2TG
| Part Name | MC7805CD2TG |
| Manufacturer | onsemi |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Polarity | Positive |
| Number Of Outputs | 1 |
| Load Regulation | 25 mV |
| Dimensions | 10.24 x 9.35 x 30.02 (mm) |
| Line Regulation | 20 mV |
| Maximum Output Current (A) | 1 (A) |
| Regulator Type | Linear Voltage |
| Output Type | Fixed |
| Height | 30.02 (mm) |
| Width | 9.35 (mm) |
| Length | 10.24 (mm) |
| Output Voltage (V) | 5 V |
| Package Type | D2PAK |
| Minimum Operating Temperature | 0 °C |
| Mounting Type | Surface Mount |
| Accuracy | ±4 (%) |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 3 |
| Maximum Input Voltage (V) | 35 V |
| Quiescent Current (A) | 3.2 (mA) |
