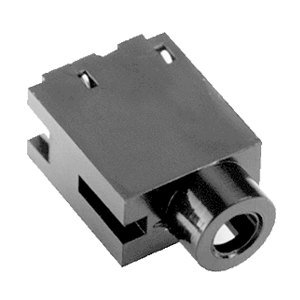

2.5 mm, Mono, Right Angle, Through Hole, Audio Jack Connector
CAD Models: Symbol and Footprint
Specifications for the MJ-2509N
|Formats Available for
Symbols and Footprints
|Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus|
