OPA2209AIDGKT
Dual, 2.2-nV/rtHz, 18-MHz, precision, RRO, 36-V operational amplifier
Availability: In Stock
Package Type: VSSOP-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the OPA2209AIDGKT by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Simulation Models
- More
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

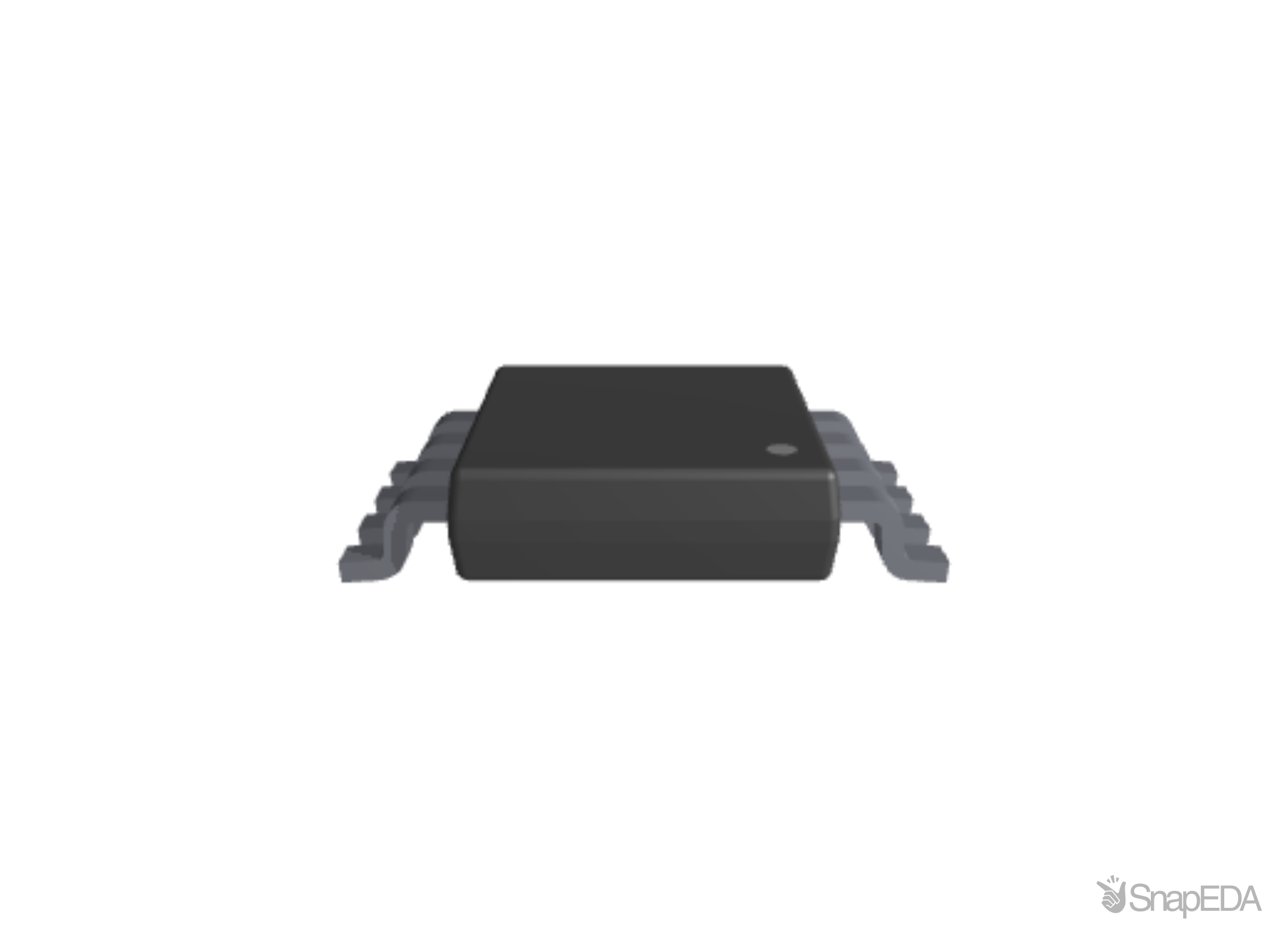

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
Simulation Models
More
| Verification | Issues | Specs | Pricing |
Specifications for the OPA2209AIDGKT
| Part Name | OPA2209AIDGKT |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Typical Voltage Gain (V) | 132 dB |
| Typical Dual Supply Voltage (V) | ±2.25 → ±18 (V) |
| Typical Input Voltage Noise Density (V) | 3.3 (nV/√Hz) |
| Dimensions | 3.05 x 1.75 x 1.3 (mm) |
| Mounting Type | Surface Mount |
| Typical Slew Rate | 6.4 (V/µs) |
| Power Supply Type | Dual, Single |
| Number Of Channels Per Chip | 1 |
| Rail To Rail | Rail to Rail Output |
| Maximum Operating Frequency | 1 kHz |
| Typical Gain Bandwidth Product | 18 (MHz) |
| Typical Single Supply Voltage (V) | 4.5 → 36 V |
| Width | 1.75 (mm) |
| Length | 3.05 (mm) |
| Package Type | VSSOP |
| Minimum Operating Temperature | -40 °C |
| Amplifier Type | Precision |
| Height | 1.3 (mm) |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 8 |
Inventory for the OPA2209AIDGKT by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,796
|
|
Visit Site | |
|
★ Featured
|
1,710
|
|
Visit Site | |
|
★ Featured
|
7,500
|
149 x $2.01
|
Visit Site | |
| Texas Instruments |
104,880
|
|
Visit Site |
No issues have been reported for the OPA2209AIDGKT
