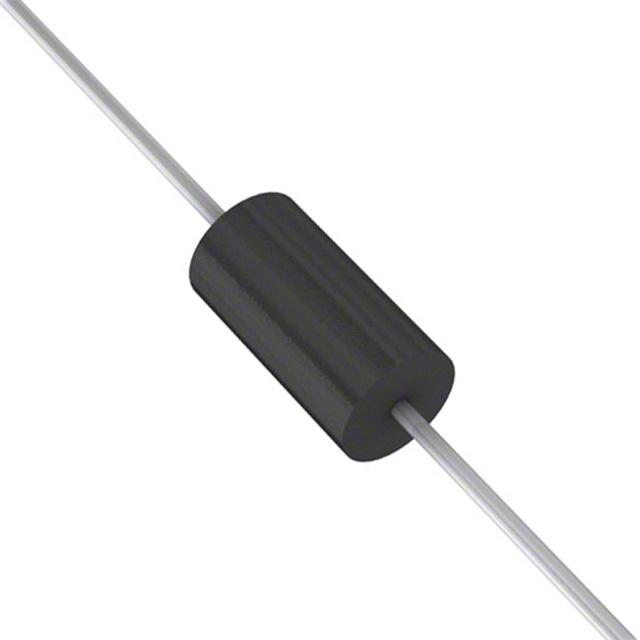

P6KE200A
600W, 200V, 5%, Unidirectional, TVS
Package Type: SURMETIC 40-2
CAD Models: Footprint
What is SnapEDA?
SnapEDA is a free library of symbols & footprints for the P6KE200A by Taiwan Semiconductor Corporation and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- 2D Model
- 3D Model
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.
Footprint
No web preview
This Footprint is Available for
Download Footprint
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
More Resources
| Verification | Issues | Specs | Pricing |
Specifications for the P6KE200A
| Part Name | P6KE200A |
| Manufacturer | Taiwan Semiconductor |
| Maximum DC Reverse Current (A) | 1e-06 |
| Stand-off Voltage (V) | 171.0 |
| Case Package | DO-204AC (DO-15) |
| Breakdown Voltage Tolerance (V) | 5.0 |
| AEC-Q compliant | True |
| Maximum peak impulse current (A) | 2.2 |
| Maximum Operating Junction Temperature | 175.0 |
| Minimum Breakdown Voltage (V) | 190.0 |
| Maximum clamping voltage (V) | 274.0 |
| Maximum Breakdown Voltage (V) | 210.0 |
| Configuration | Unidirectional |
| Breakdown Voltage (V) | 200.0 |
| Maximum Peak Pulse Power | 600.0 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
