PF083A-E

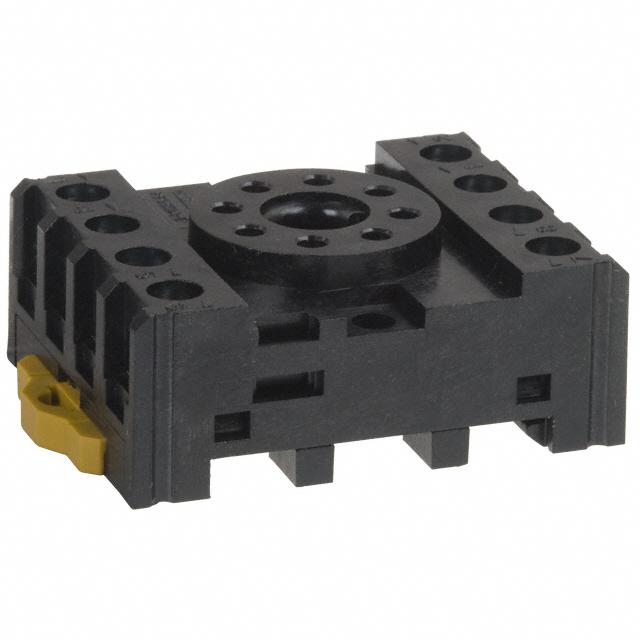

RELAY SOCKET 8 POSITION DIN RAIL
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PF083A-E by Omron and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PF083A-E
| Part Name | PF083A-E |
| Manufacturer | Omron Automation |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Current Rating (A) | 10 (A) |
| Mounting Type | DIN Rail |
| Accessory Type | Socket |
| Voltage (V) | 250 (V ac) |
| Termination Type | Screw |
| For Use With | MK2PD-I, MK2PD-S, MK2P-I, MK2PND-I, MK2PND-S, MK2PN-I, MK2PN-S, MK2PNV-I, MK2PNV-S, MK2P-S, MK2PV-I, MK2PV-S |
| Number Of Contacts | 8 |
