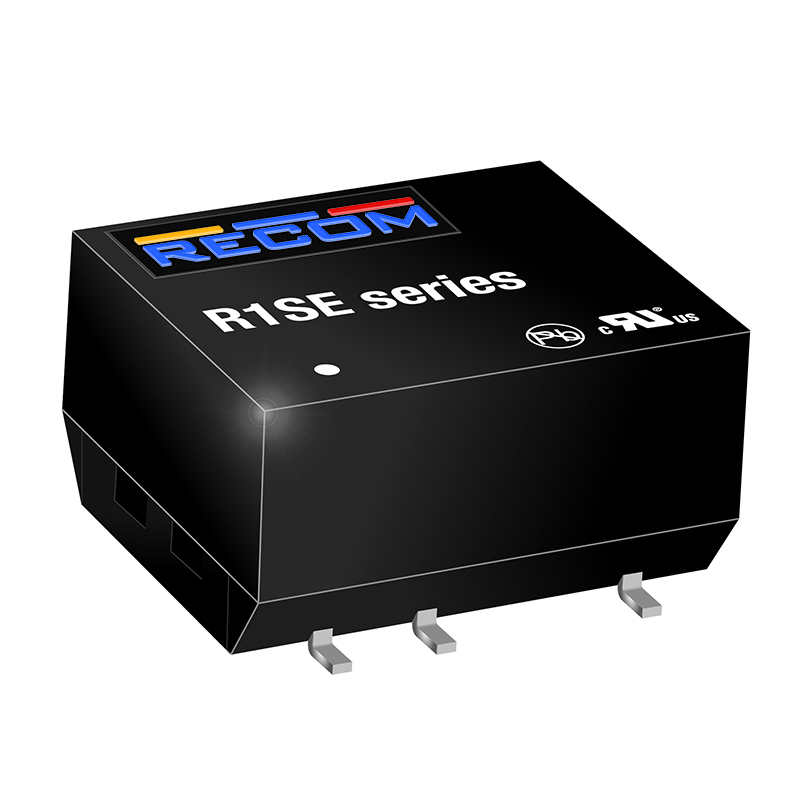

R1SE-0505-R
1W DC/DC-Converter 'ECONOLINE' SMD 1kV unreg
Package Type: SMD-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapEDA?
SnapEDA is a free library of symbols & footprints for the R1SE-0505-R by Recom Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- 2D Model
- 3D Model
Symbol
No web preview
This Symbol is Available for
Download Symbol and Footprint
Footprint
No web preview
This Footprint is Available for
Download Footprint
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
More Resources
| Verification | Issues | Specs |
Specifications for the R1SE-0505-R
| Part Name | R1SE-0505-R |
| Manufacturer | Recom Power |
| Isolation Voltage (V) | 1000.0 |
| Case Package | SMD 5 Pin |
| Packaging Type | Tape & Reel |
| Short Circuit Protection | False |
| Product Link | https://recom-power.com/en/products/dc-dc-converters/rec-p-R1SE-0505-R.html |
| Number of Outputs | 1.0 |
| Power Rating | 1.0 |
| Category | Isolated DC/DC Converters |
| Input Voltage (V) | [5.0, 5.0] |
| Series | R1SE |
| Output Current (A) | 0.2 |
| Output Voltage (V) | [5.0, 5.0] |
| Lead Free Status | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the R1SE-0505-R by Recom Power from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
5,000
|
500 x $2.49
|
Visit Site | |
|
★ Featured
|
3,436
|
|
Visit Site | |
| Arrow Europe |
9,000
|
|
Visit Site | |
| Onlinecomponents |
2,000
|
|
Visit Site |
