RB-0512D

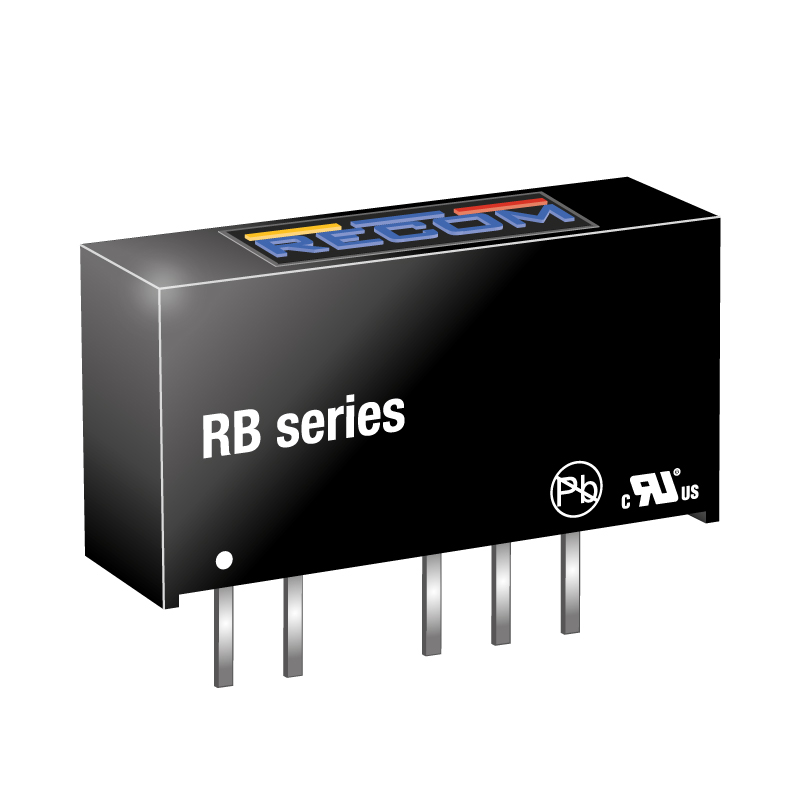

1W DC/DC-Converter 'ECONOLINE' SIP7 1kV unreg
Package Type: SIP-7
CAD Models: Symbol, Footprint, 3D Model
What is SnapEDA?
SnapEDA is a free library of symbols & footprints for the RB-0512D by Recom Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- 2D Model
- 3D Model
Symbol
No web preview
This Symbol is Available for
Download Symbol and Footprint
Footprint
No web preview
This Footprint is Available for
Download Footprint
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
More Resources
| Verification | Issues | Specs |
Specifications for the RB-0512D
| Part Name | RB-0512D |
| Manufacturer | Recom Power |
| Short Circuit Protection | False |
| Category | Isolated DC/DC Converters |
| Output Voltage (V) | [12.0, 12.0] |
| Product Link | https://recom-power.com/en/products/dc-dc-converters/rec-p-RB-0512D.html |
| Number of Outputs | 2.0 |
| Lead Free Status | True |
| Input Voltage (V) | [5.0, 5.0] |
| Packaging Type | Tube |
| Isolation Voltage (V) | 1000.0 |
| Series | RB |
| Case Package | SIP7 |
| Power Rating | 1.0 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
