REC6-1205SRW/R10/A

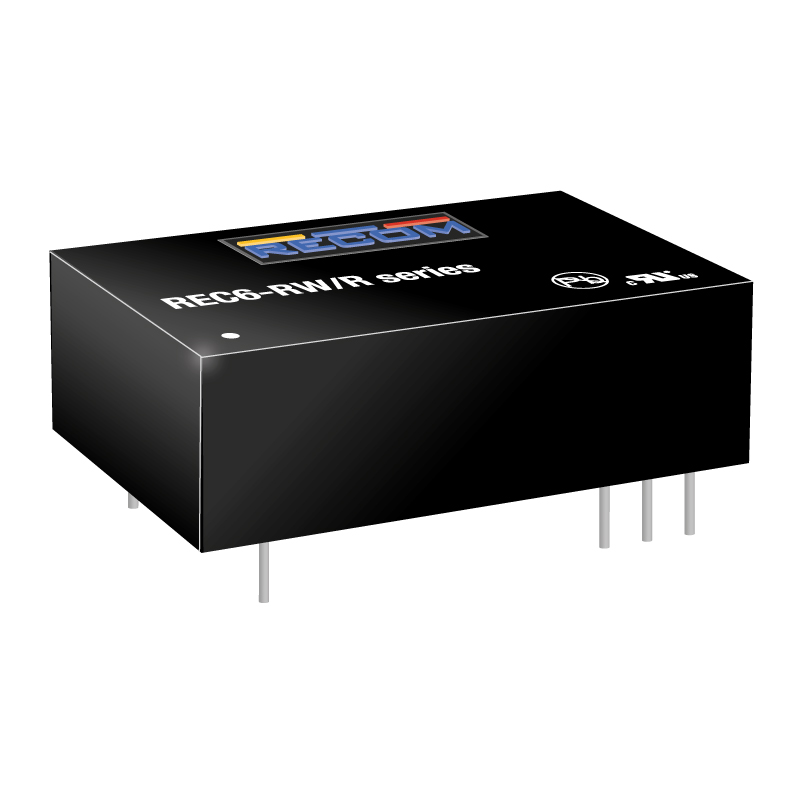

6W DC/DC-Converter 'ECONOLINE' DIP24 10kV reg 2:1
Package Type: DIP-24
CAD Models: Symbol, Footprint, 3D Model
What is SnapEDA?
SnapEDA is a free library of symbols & footprints for the REC6-1205SRW/R10/A by Recom Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- 2D Model
- 3D Model
Symbol
No web preview
This Symbol is Available for
Download Symbol and Footprint
Footprint
No web preview
This Footprint is Available for
Download Footprint
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
More Resources
| Verification | Issues | Specs |
Specifications for the REC6-1205SRW/R10/A
| Part Name | REC6-1205SRW/R10/A |
| Manufacturer | Recom Power |
| Output Current (A) | 1.0 |
| Power Rating | 6.0 |
| Output Voltage (V) | [5.0, 5.0] |
| Lead Free Status | True |
| Short Circuit Protection | True |
| Isolation Voltage (V) | 10000.0 |
| Packaging Type | Tube |
| Case Package | DIP24 |
| Number of Outputs | 1.0 |
| Input Voltage (V) | [9.0, 18.0] |
| Series | REC6-S_DRW/R |
| Category | Regulated DC/DC Converter |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
