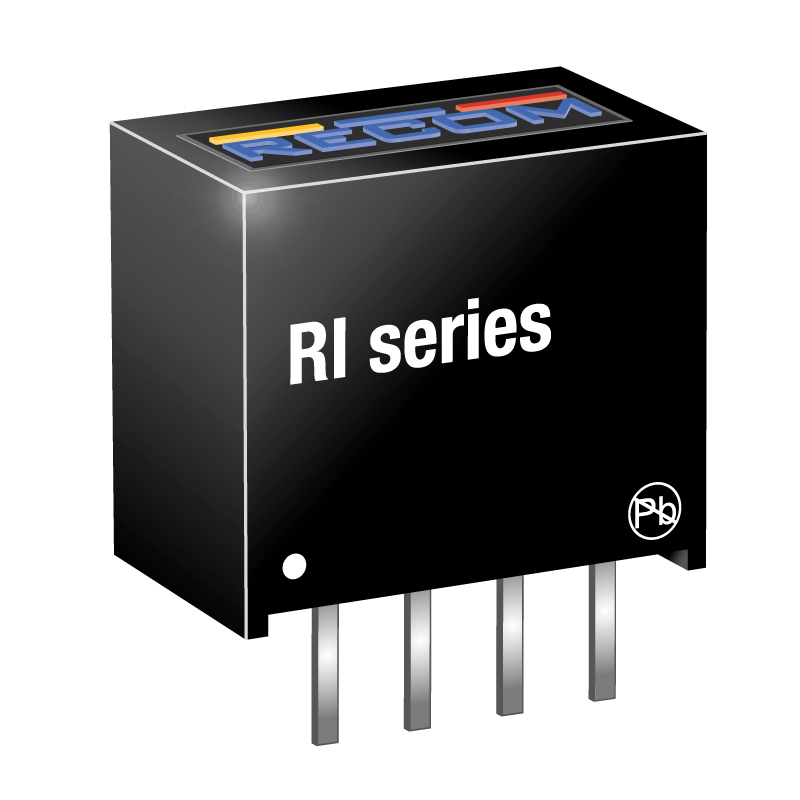

RI-0505S
2W DC/DC-Converter 'ECONOLINE' SIP4 1kV unreg
Package Type: SIP-4
CAD Models: Symbol, Footprint, 3D Model
What is SnapEDA?
SnapEDA is a free library of symbols & footprints for the RI-0505S by Recom Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- 2D Model
- 3D Model
Symbol
No web preview
This Symbol is Available for
Download Symbol and Footprint
Footprint
No web preview
This Footprint is Available for
Download Footprint
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
More Resources
| Verification | Issues | Specs |
Specifications for the RI-0505S
| Part Name | RI-0505S |
| Manufacturer | Recom Power |
| Short Circuit Protection | False |
| Category | Isolated DC/DC Converters |
| Input Voltage (V) | [5.0, 5.0] |
| Series | RI |
| Lead Free Status | True |
| Product Link | https://recom-power.com/en/products/dc-dc-converters/rec-p-RI-0505S.html |
| Output Voltage (V) | [5.0, 5.0] |
| Isolation Voltage (V) | 1000.0 |
| Power Rating | 2.0 |
| Packaging Type | Tube |
| Case Package | SIP4 |
| Output Current (A) | 0.4 |
| Number of Outputs | 1.0 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
We could not find inventory or pricing across major distributors for the RI-0505S by Recom Power.
