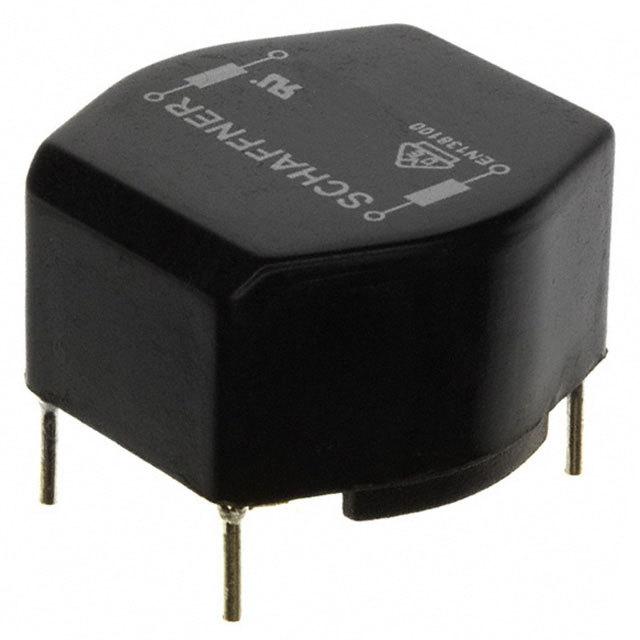

RN114-4-02
1.5 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 4A (Typ) DCR 35mOhm (Typ)
Availability: Out of Stock
Package Type: HORIZONTAL-4
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the RN114-4-02 by Schaffner and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the RN114-4-02
| Part Name | RN114-4-02 |
| Manufacturer | Schaffner EMC |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Maximum Dc Resistance | 35 (mΩ) |
| Dimensions | 22.8 x 21.8 x 13.5 (mm) |
| Tolerance | -30 → +50 (%) |
| Inductance | 1.5 mH |
| Maximum Dc Current (A) | 4 (A) |
| Series | RN |
| Length | 22.8 (mm) |
| Height | 13.5 (mm) |
| Depth | 21.8 (mm) |
| Minimum Operating Temperature | -40 (°C) |
| Lead Pitch | 20.1 (mm) |
| Maximum Operating Temperature | +125 (°C) |
| Terminal Type | PC Pin |
No issues have been reported for the RN114-4-02
