RS-35-12

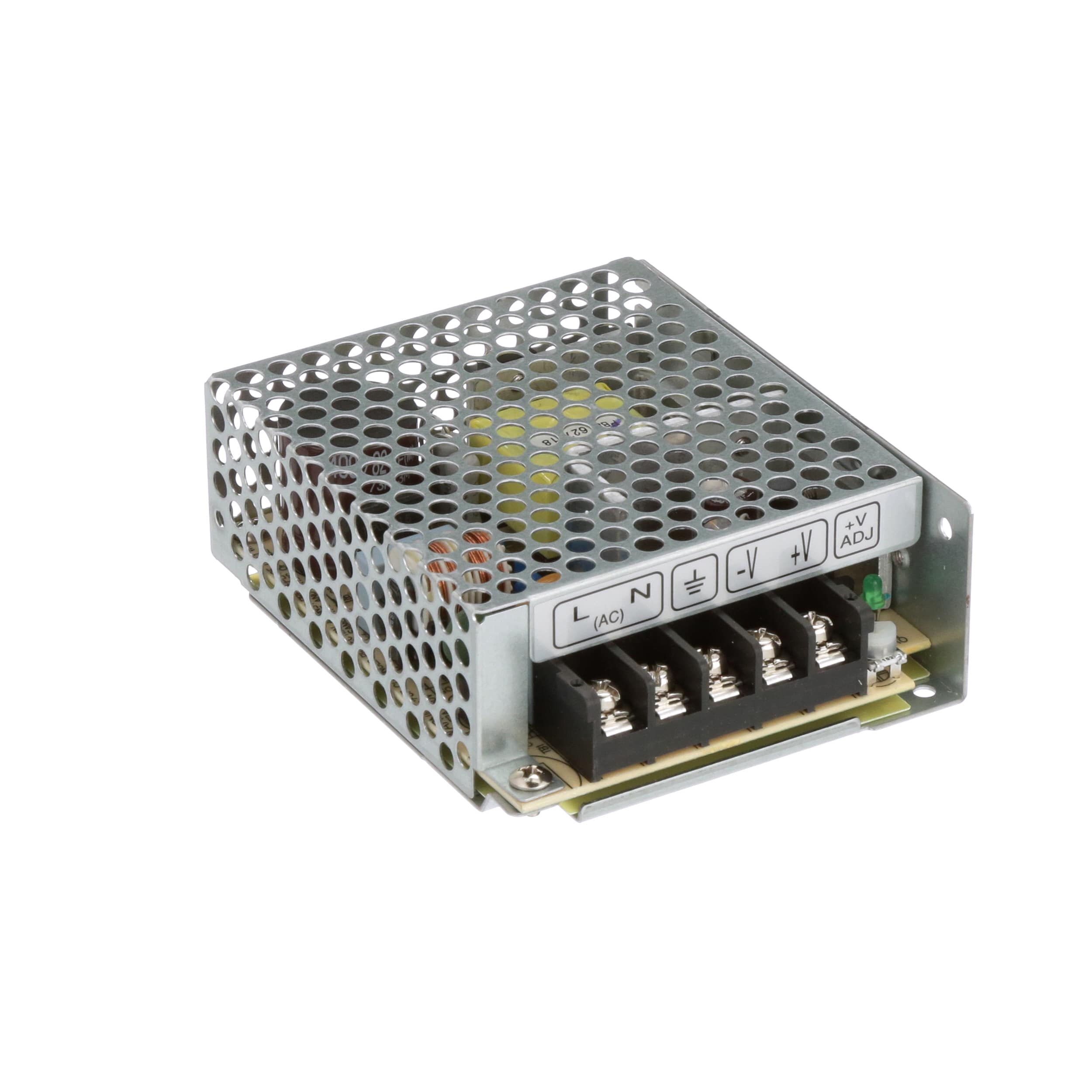

Power Supply,AC-DC,12V,3A,88-264V In,Enclosed,Panel Mount,Embedded,36W,RS Series | MEAN WELL RS-35-12
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the RS-35-12 by Mean Well and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the RS-35-12
| Part Name | RS-35-12 |
| Manufacturer | Mean Well |
| Category | Power Products |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Outputs | 1 |
| Maximum Temperature | +70 (°C) |
| Mounting Type | Chassis Mount |
| Weight | 300 (g) |
| Efficiency | 84.5 (%) |
| Minimum Temperature | -25 (°C) |
| Distrelec Product Id | 16905909 |
| Depth | 36 (mm) |
| Width | 82 (mm) |
| Length | 99 (mm) |
| Input Voltage (V) | 125 → 373 V dc, 88 → 264 V ac |
| Package Type | Enclosed |
| Output Voltage (V) | 12 (V dc) |
| Power Rating | 36 (W) |
| Output Current (A) | 3 (A) |
