SMF05C.TCT
12.5V Clamp 8A (8/20µs) Ipp Tvs Diode Surface Mount SC-70-6
Availability: In Stock

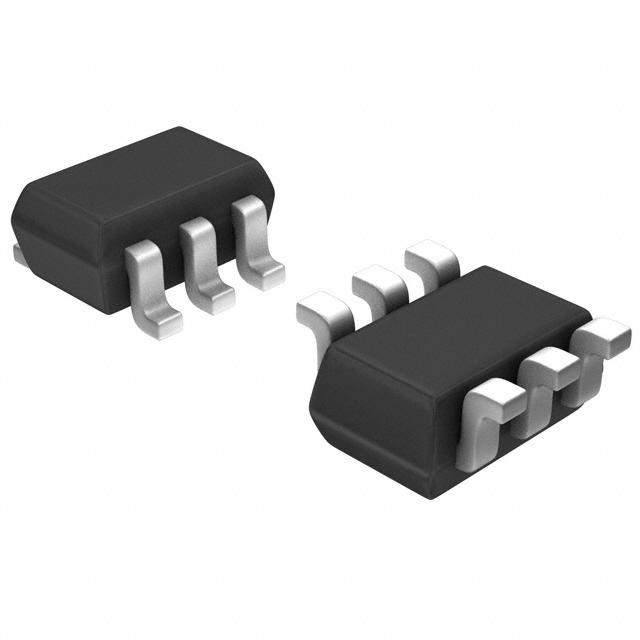

Package Type: SC-70-6
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SMF05C.TCT by Semtech and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SMF05C.TCT
| Part Name | SMF05C.TCT |
| Manufacturer | Semtech |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Maximum Reverse Stand Off Voltage (V) | 5 (V) |
| Maximum Peak Pulse Current (A) | 8 (A) |
| Dimensions | 2 x 1.25 x 0.9 (mm) |
| Minimum Breakdown Voltage (V) | 6 (V) |
| Direction Type | Uni-Directional |
| Maximum Operating Temperature | +125 °C |
| Maximum Reverse Leakage Current (A) | 5 (µA) |
| Esd Protection | Yes |
| Maximum Clamping Voltage (V) | 12.5 (V) |
| Width | 1.25 (mm) |
| Length | 2 (mm) |
| Package Type | SOT-363 (SC-70) |
| Number Of Elements Per Chip | 5 |
| Minimum Operating Temperature | -55 °C |
| Mounting Type | Surface Mount |
| Height | 0.9 (mm) |
| Diode Configuration | Common Anode |
| Pin Count | 6 |
| Peak Pulse Power Dissipation | 100 (W) |
| Test Current (A) | 1 (mA) |
Inventory for the SMF05C.TCT by Semtech from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
34,022
|
|
Visit Site | |
|
★ Featured
|
57,000
|
2,335 x $0.13
|
Visit Site | |
| Arrow Electronics |
2,063
|
|
Visit Site | |
| Avnet America |
12,000
|
|
Visit Site | |
| Newark |
2,727
|
|
Visit Site | |
| TME |
2,838
|
|
Visit Site | |
| Verical |
2,063
|
|
Visit Site |
No issues have been reported for the SMF05C.TCT
