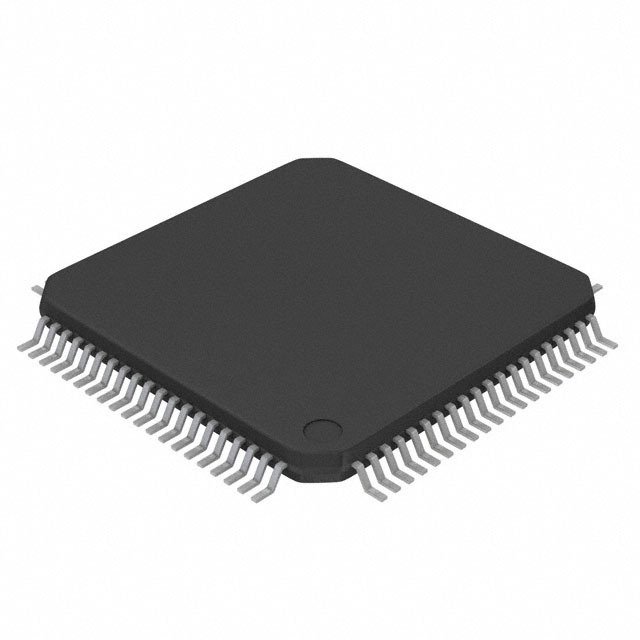

SN74V293-7PZA
65536 x 18 Synchronous FIFO Memory
Availability: In Stock
Package Type: LQFP-80
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SN74V293-7PZA by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

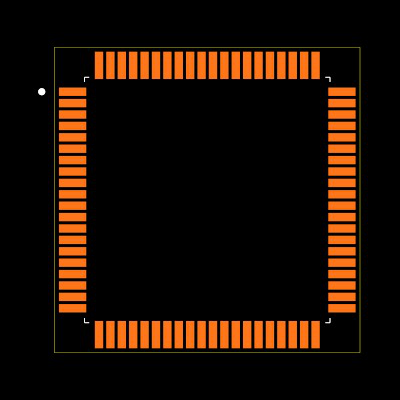

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SN74V293-7PZA
| Part Name | SN74V293-7PZA |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Data Bus Width | 9/18 (bit) |
| Dimensions | 14 x 14 x 1.4 (mm) |
| Mounting Type | Surface Mount |
| Organisation | 128K x 9 bit, 64K x 18 bit |
| Minimum Operating Supply Voltage (V) | 3.15 V |
| Height | 1.4 (mm) |
| Width | 14 (mm) |
| Length | 14 (mm) |
| Clock Frequency | 133 (MHz) |
| Package Type | LQFP |
| Minimum Operating Temperature | 0 °C |
| Bus Directional | Uni-Directional |
| Maximum Random Access Time | 5 (ns) |
| Maximum Operating Supply Voltage (V) | 3.45 V |
| Configuration | Dual |
| Maximum Operating Temperature | +70 °C |
| Pin Count | 80 |
| Access Time | 2 ns |
| Expansion Support | Yes |
Inventory for the SN74V293-7PZA by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
480
|
11 x $28.71
|
Visit Site | |
| Texas Instruments |
1,715
|
|
Visit Site | |
| Verical |
460
|
|
Visit Site |
No issues have been reported for the SN74V293-7PZA
If you experienced any issues with the symbol or footprint, please report it.
