TPD4E001DBVR
Quad 1.5-pF, 5.5-V, ±8-kV ESD protection diode with 1-nA max leakage & VCC pin for USB 2.0
Availability: In Stock
Package Type: SOT-23-6
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TPD4E001DBVR by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

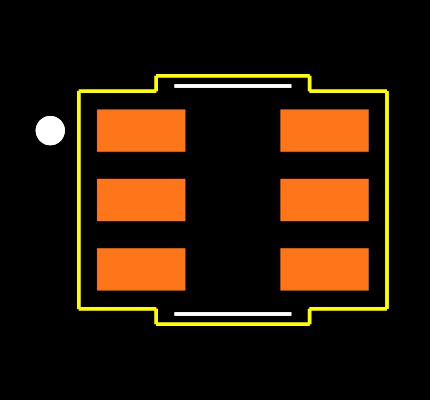

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TPD4E001DBVR
| Part Name | TPD4E001DBVR |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Reverse Stand Off Voltage (V) | 5.5 (V) |
| Maximum Peak Pulse Current (A) | 5.5 (A) |
| Dimensions | 3.05 x 1.75 x 1.3 (mm) |
| Minimum Breakdown Voltage (V) | 11 (V) |
| Direction Type | Uni-Directional |
| Maximum Operating Temperature | +85 °C |
| Maximum Reverse Leakage Current (A) | 1 (nA) |
| Esd Protection | Yes |
| Maximum Clamping Voltage (V) | 100 (V) |
| Width | 1.75 (mm) |
| Length | 3.05 (mm) |
| Package Type | SOT-23 |
| Number Of Elements Per Chip | 4 |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Surface Mount |
| Height | 1.3 (mm) |
| Diode Configuration | Complex Array |
| Pin Count | 6 |
| Peak Pulse Power Dissipation | 100 (W) |
| Test Current (A) | 10 (mA) |
Inventory for the TPD4E001DBVR by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
17,964
|
|
Visit Site | |
|
★ Featured
|
15,927
|
|
Visit Site | |
|
★ Featured
|
188,570
|
6,250 x $0.05
|
Visit Site | |
| Texas Instruments |
5,704
|
|
Visit Site | |
| Verical |
1,352
|
|
Visit Site |
No issues have been reported for the TPD4E001DBVR
