LT1229CN8#PBF

Name: LT1229CN8#PBF
Brand: Analog Devices

IC, OP AMP, DUAL, DIP8, 1129; Op Amp Type:Current Feedback; No. of Amplifiers:2; Bandwidth:100MHz; Slew Rate:700V/µs; Supply Voltage Range:± 2V to ± 15V; Amplifier Case Style:DIP; No. of Pins:8; Operating Temperature Range:0°C to +70°C; SVHC:No SVHC (19-Dec-2011); Amplifier Type:Operational; Base Number:1129; Gain Bandwidth:100MHz; Input Offset Voltage Max:15mV; Operating Temperature Max:70°C; Operating Temperature Min:0°C; Package / Case:DIP; Slew Rate:1000V/µs; Supply Voltage + Nom:18V; Supply Voltage Max:15V; Supply Voltage Min:2V; Termination Type:Through Hole

Availability: Out of Stock

CAD Models: Symbol and Footprint

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the LT1229CN8#PBF by Analog Devices and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint

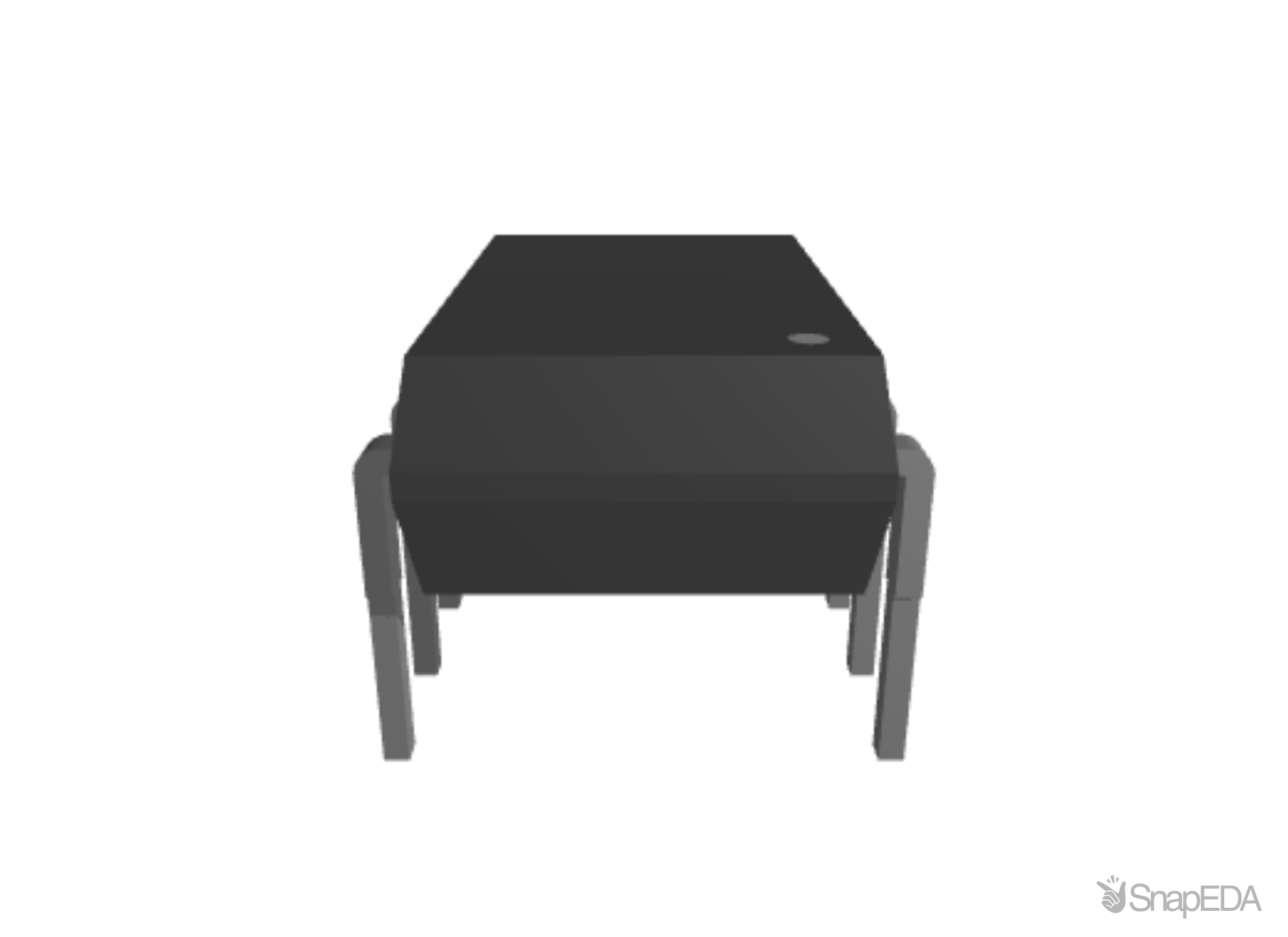

3D Model
