Search millions of Allegro libraries by part number or keyword
Download the Allegro schematic symbol and PCB footprint for free.

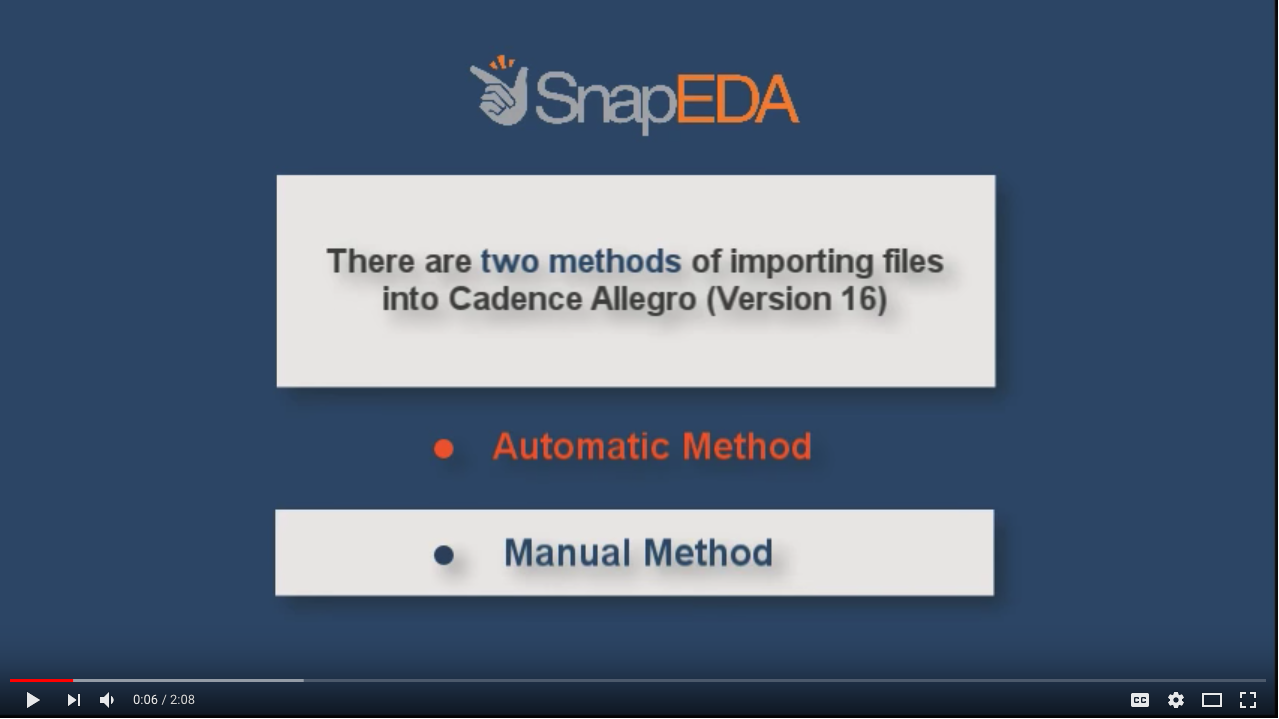

Import directly into Allegro (or other CAD tools) and save hours on design

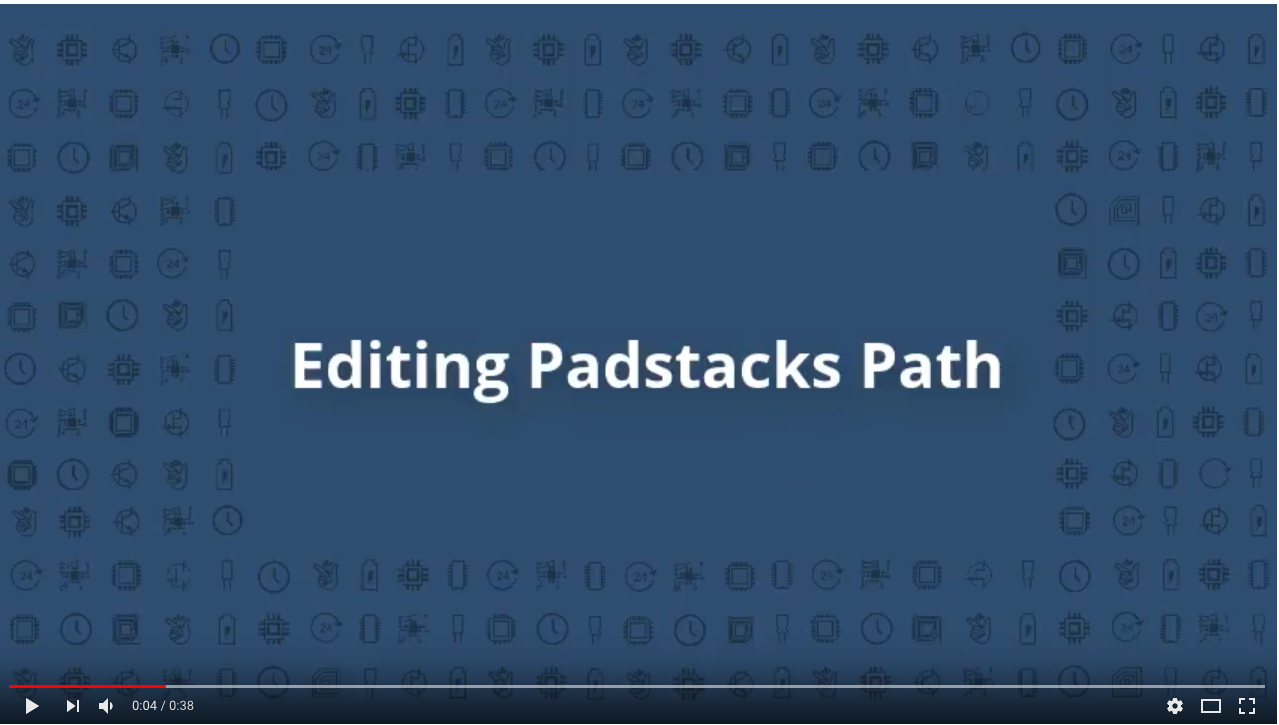

We provide .dra, .psm, and .pad files for seamless import of symbols & footprints into Allegro.
SnapEDA follows IPC-7351B standards for its footprints, and a combination of IEEE-315 and its own standards for symbols.
All models are created by our component engineering team using a mix of automated and manual processes, and verified with a three-step verification process.
Learn more about our standards here.
SnapEDA's libraries are free, but if a part isn't yet available, we'll deliver it to you within 24 hours! Get the Allegro symbol & footprint for only $29 (or less).
Browse Allegro symbols, footprints, and 3D models from more than 20 categories, including Microprocessors, Amplifiers, Buffers and Power ManagementSee all Categories
