InstaBuild (beta)

Build circuit boards faster with simple computer vision

Save hours creating schematic symbols and PCB footprints by using simple computer vision and OCR to build them in minutes. All Free.

How It Works

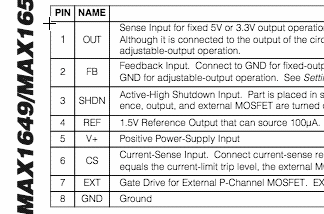

Step 1

Highlight the pin definition from the datasheet. The pin data will be extracted using our computer vision algorithm.

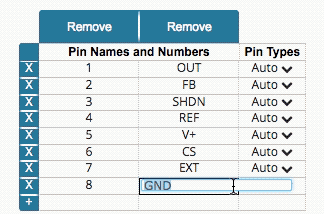

Step 2

Modify the extracted data to your preferences if needed and generate the symbol.

Step 2

Modify the extracted data to your preferences if needed and generate the symbol.

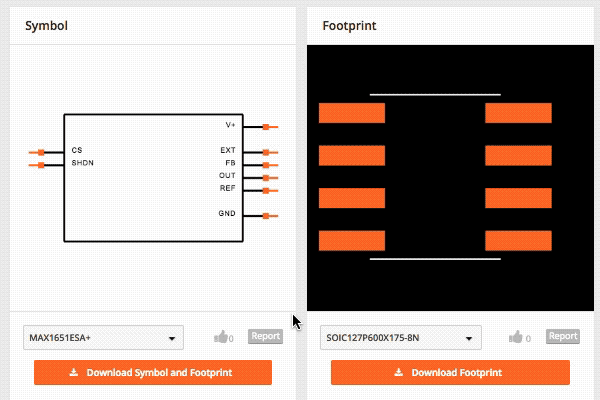

Step 3

The symbol will automatically link to a verified footprint. It can then be downloaded in all major formats.

Search

Build Fast and Free

Easily build a schematic symbol using the datasheet in minutes. All Free.

Search

Build to Standards

Symbols are automatically linked to an IPC-compliant footprint to meet manufacturing standards.

Search

Build Any Format

Available to download for all major PCB design tool formats.

Exports To

  • Cadence

    Cadence

  • OrCAD

    OrCAD

  • Altium Designer

    Altium

  • Eagle CAD

    Eagle

  • PADS CAD

    PADS

  • KiCad

    KiCad

  • PCB123

    PCB123

  • Pulsonix

    Pulsonix

See it in Action

Built to Standards

The generated symbol is automatically linked to a verified footprint that follows IPC-7351B standards.

All footprints were created by our in-house component engineering team and verified with a three-step verification process.

Learn more about our standards here.

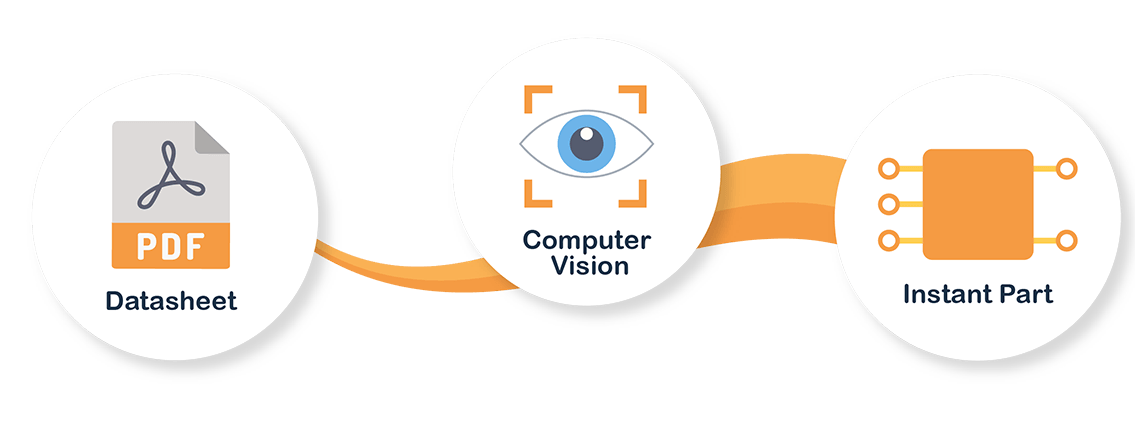

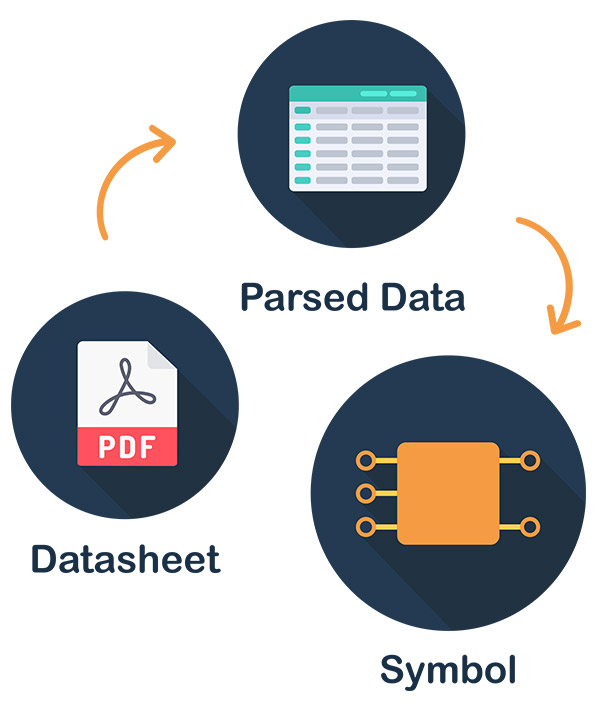

Leveraging Latest Technology

We're using the latest computer vision technology to automatically recognize the pin numbers and names from the pin definition table. Using our algorithm, we're able to automatically detect the type of each pin and place them in the appropriate place in the schematic symbol.

Free For All

InstaBuild is available for free on select SnapEDA part pages. Try out these example parts below.

MAX1652ESA+

Maxim Integrated

MAX1651ESA+

SOIC-8 Package

Build Now
DRV2667RGPT

Texas Instruments

DRV2667RGPT

VFQFN-20 Package

Build Now
LM324MT/NOPB

Texas Instruments

LM324MT/NOPB

TSSOP-14 Package

Build Now

Made by SnapEDA

SnapEDA's free, ready-to-use library shaves days off product development time so designers can focus on optimization and innovation. Tens of thousands of engineers worldwide rely on SnapEDA to design faster.

Visit SnapEDA
`

About Us

SnapEDA is a startup based in San Francisco whose goal is to build the canonical library for circuit board design. We're inspired by innovation, and want to make it as easy as possible to move from idea to product.

Learn More
