Design faster with Kingston libraries

Download free symbols & PCB footprints for Kingston products.

Why We Built This

If you were building a rocket ship using Legos, would you first mould each Lego piece?

When building circuit boards, engineers spend days creating the building blocks (symbols, footprints, and 3D models) needed to represent each component in their designs. We think that time can be better spent building better, cooler products.

This is why we've collaborated with Kingston to release free symbols & footprints for their products. We hope these libraries will help engineers design better products faster.

Explore Kingston Parts

What Is SnapEDA?

SnapEDA is the leading electronics design search engine. We provide free symbols, footprints and 3D models for PCB design.

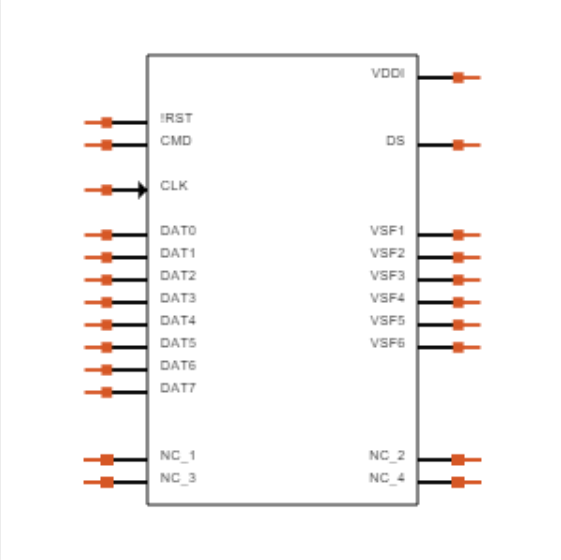

Symbol
Kingston Symbol

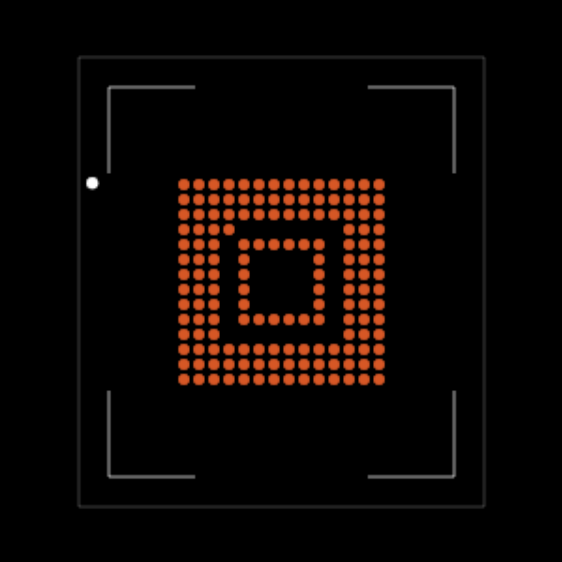

Footprint
Kingston Footprint

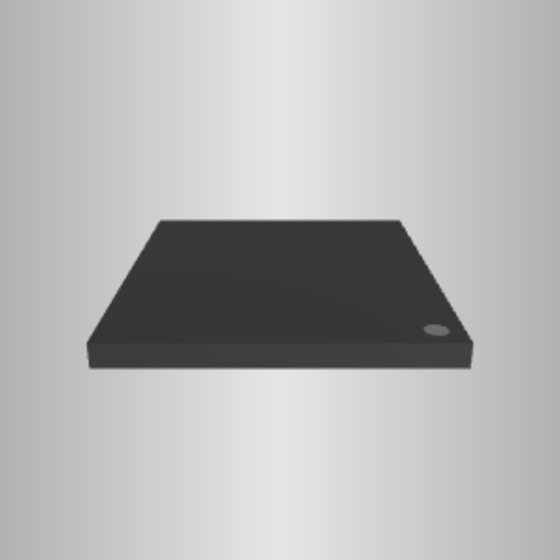

3D Model

How It Works

Search

1. Search For a Part

Search thousands of Kingston libraries by part number or keyword

Search

2. Download

Download the symbol and PCB footprint for the Kingston product free

Search

3. Get Back to Design

Drag-and-drop into your PCB design tool to save hours.

Exports To

  • Cadence

    Cadence

  • OrCAD

    OrCAD

  • Altium

  • Eagle

  • PADS

  • KiCad

    KiCad

  • PCB123

    PCB123

Kingston

Breakdown of New Kingston Parts Added to SnapEDA (%)

Top Downloaded Kingston Parts

2199035-2

EMMC04G-W627-M06U

EMMC 5.1 (HS400) 153B 4Gb - INDU

View Part
FSM8JRT

EMMC04G-M627-A01

Flash Memory Card 4 GB 3.3V

View Part
1-106507-2

EMMC04G-M657-K03U

EMMC 5.1 (HS400) 153B 4GB Small

View Part

What Standards Do We Follow

We follow IPC-7351B standards for common packages, and Kingston's recommendations (as specified in their datasheets). For symbols, we follow IEEE-315 and our own standards, as outlined here.

All models are created by our component engineering team using a mix of automated and manual processes, and verified with a three-step verification process.

Quality & Verification

Using our platform, designers can gain transprency into the standards that each model follows, such as whether it was made with IPC standards, or manufacturer recommendations.

To ensure quality, our automated verification technology provide transparency into manufacturability.
