01000057Z

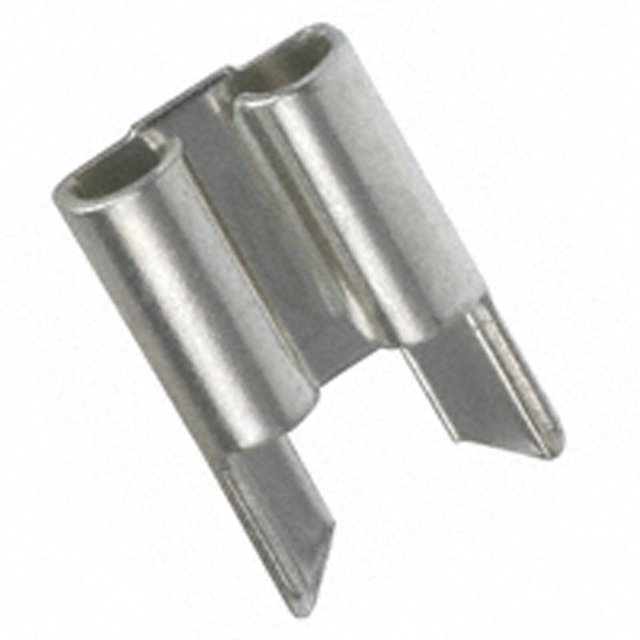

Fuse Clip 15 A 125V 1 Circuit Blade Through Hole
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 01000057Z by Littelfuse and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 01000057Z
| Part Name | 01000057Z |
| Manufacturer | Littelfuse Inc. |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Mounting Style | Through-Hole Mount |
| Current Rating (A) | 15 (A) |
| Voltage Rating (V) | 125 (V ac/dc) |
| Series | 100_57 |
| Height | 7.1 (mm) |
| Clip Material | Brass |
| Length | 6.9 (mm) |
| Fuse Type | Blade |
| Contact Plating | Tin |
| For Use With | ATC Series, ATO |
