0154004.DRT
Nano2 anti surge SMD T fuse w/holder, 4A | Littelfuse 0154004.DRT
Availability: Out of Stock
Package Type: SMD-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 0154004.DRT by Littelfuse and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

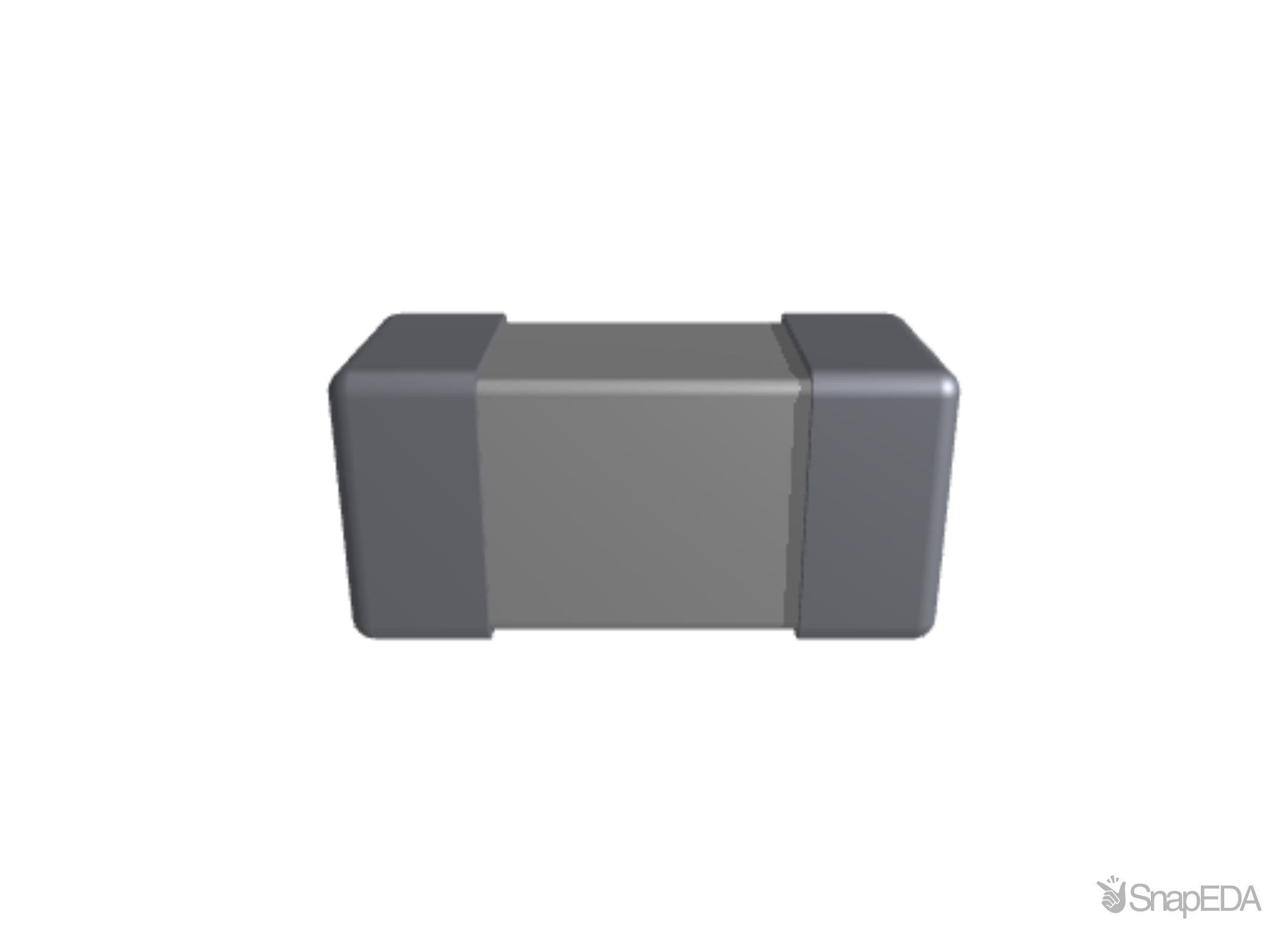

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 0154004.DRT
| Part Name | 0154004.DRT |
| Manufacturer | Littelfuse Inc. |
| Category | Circuit Breakers, Fuses & Protection |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 4 (A) |
| Body Height | 3.81 (mm) |
| Voltage Rating (V) | 125 (V ac/dc) |
| Body Material | Thermoplastic |
| Body Length | 9.73 (mm) |
| Fuse Speed | T |
| Minimum Operating Temperature | -55 (°C) |
| Distrelec Product Id | 30399588 |
| Breaking Capacity At Maximum Voltage Rating (V) | 50 A @ 125 V ac/dc |
| Body Width | 5.03 (mm) |
| Maximum Operating Temperature | +125 (°C) |
No issues have been reported for the 0154004.DRT
