0299020.TXN

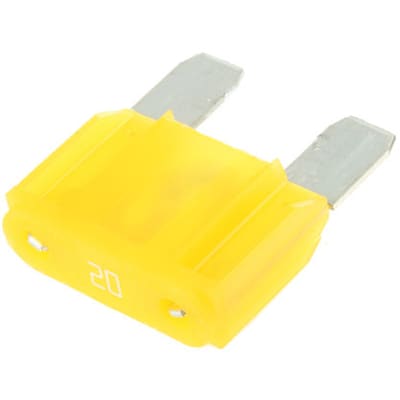

1299 yellow time lag maxifuse, 20A 32Vdc | Littelfuse 0299020.TXN
Availability: In Stock
Package Type: BLADE MAX
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 0299020.TXN by Littelfuse and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 0299020.TXN
| Part Name | 0299020.TXN |
| Manufacturer | Littelfuse |
| Category | Circuit Breakers, Fuses & Protection |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Breaking Capacity At Maximum Voltage Rating (V) | 1000 A |
| Current Rating (A) | 20 (A) |
| Operating Temperature Range | -40 → +125 °C |
| Colour | Yellow |
| Voltage Rating (V) | 32 (V dc) |
| Body Material | Plastic |
| Height | 34.29 (mm) |
| Width | 8.85 (mm) |
| Length | 29.21 (mm) |
| Fuse Speed | T |
| Minimum Operating Temperature | -40 (°C) |
| Fuse Type | Blade |
| Maximum Operating Temperature | +125 (°C) |
| Blade Size | Maxi |
