034-1021

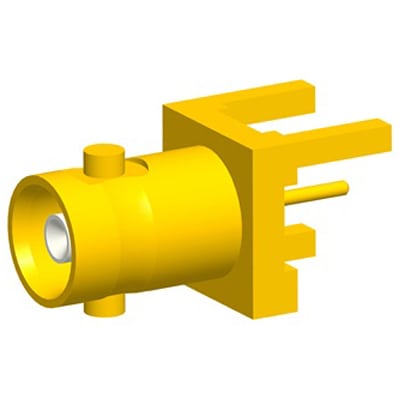

Straight 75Ohms Panel Mount BNC Connector, jack, Press-In Termination Gold | Amphenol RF 034-1021
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 034-1021 by Amphenol and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 034-1021
| Part Name | 034-1021 |
| Manufacturer | Amphenol |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Drawing/Datasheet | Drawing/Datasheet |
| Polarity | Normal |
| Body Plating | Gold |
| Mounting Type | Panel Mount |
| Gender | Female |
| Body Orientation | Straight |
| Contact Plating | Gold |
| Termination Method | Press-In |
| Operating Frequency | 4.5 (GHz) |
| Impedance | 75 (Ω) |
| Contact Material | Beryllium Copper |
| Size | Standard |
