0443023

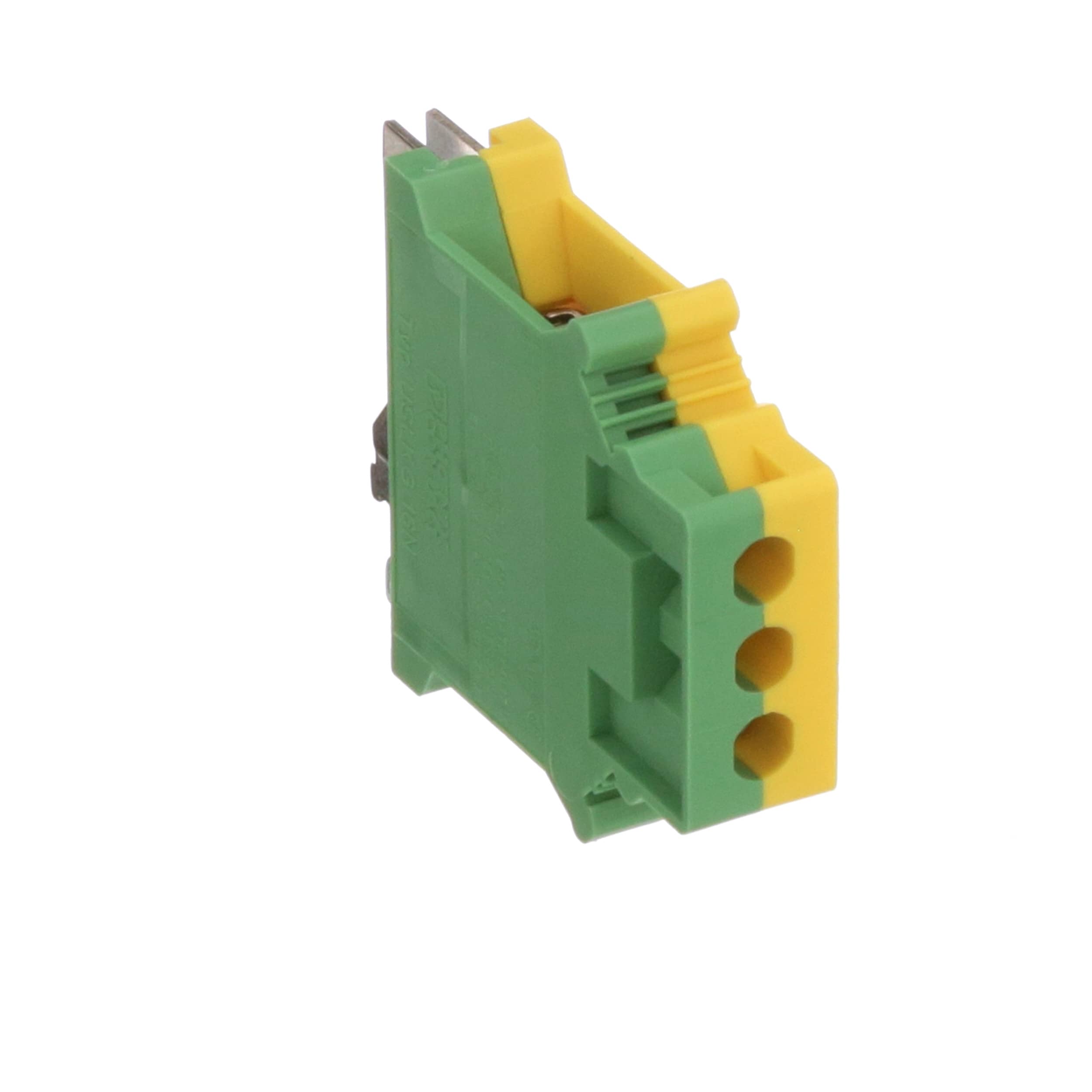

Terminal Block 22-4 AWG Screw Connection 1 2 8 kV 1.50 Nm PA 11 mm | Phoenix Contact 0443023
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 0443023 by Phoenix Contact and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 0443023
| Part Name | 0443023 |
| Manufacturer | Phoenix Contact |
| Category | Connectors |
| Max. Line Cross Section, Rigid | 25 |
| Width | 12.2 |
| Min. Line Cross Section, Rigid | 2.5 |
| Number Of Clamping Points | 2 |
| Min. Line Cross Section, Flexible | 4 |
| Product Description | Protective conductor terminal block |
| Gtin (ean) Code | 4017918002268 |
| Nominal Cross Section | 16 |
| Internal Article Number | 0443023 |
| Number Of The Executions Of The Housing Parts | 0 |
| Max. Line Cross Section, Flexible | 16 |
| Power Loss Per Pole, Current-dependent [plip] (A) | 2.43 |
| Mounting Design | Assembly |
| Depth | 52.6 |
| Type Of Enveloping Body | enveloping body cuboid |
| Manufacturer Product Designation | Protective conductor terminal block |
| RoHS | True |
| Flammability Rating Of The Insulating Material (based On Ul 94) | V0 |
| Product Article Number Of Manufacturer | 0443023 |
| Net Weight | 0.03764 |
| Height | 42.5 |
| Connection Type (1) | Screw connection |
| GTIN | 4017918002268 |
| Closing Plate Required | False |
