0451.100MRL

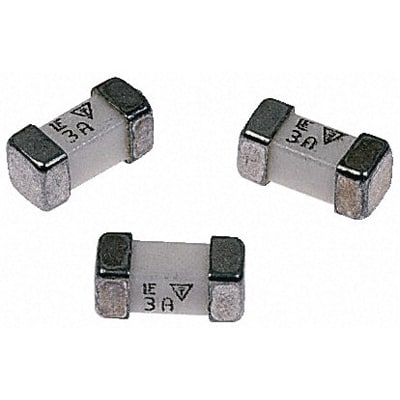

0.1A FF Non-Resettable Surface Mount Fuse, 125 V | Littelfuse 0451.100MRL
Availability: Out of Stock
Package Type: SMD-2
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 0451.100MRL by Littelfuse and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 0451.100MRL
| Part Name | 0451.100MRL |
| Manufacturer | Littelfuse Inc. |
| Category | Circuit Breakers, Fuses & Protection |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Body Height | 2.69 (mm) |
| Current Rating (A) | 100 (mA) |
| Dimensions | 6.1 x 2.69 x 2.69 (mm) |
| Voltage Rating (V) | 125 (V) |
| Terminal Material | Gold Plated, Silver Plated, SnPb Plated |
| Body Material | Ceramic |
| Body Length | 6.1 (mm) |
| Fuse Speed | FF |
| Minimum Operating Temperature | -55 (°C) |
| Breaking Capacity At Maximum Voltage Rating (V) | 300 A @ 32 V dc, 50 A @ 125 V ac/dc |
| Body Width | 2.69 (mm) |
| Maximum Operating Temperature | +125 (°C) |
