06031A4R7CAT2A

Name: 06031A4R7CAT2A
Brand: AVX

Capacitor, 4.7 pF, +/-0.25 pF, 0603, 0 +/-30 ppm/C, 100000 Megohms, 100 V, -55 C | AVX 06031A4R7CAT2A

Availability: Out of Stock

Package Type: 1608

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the 06031A4R7CAT2A by AVX and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model
Alternates

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

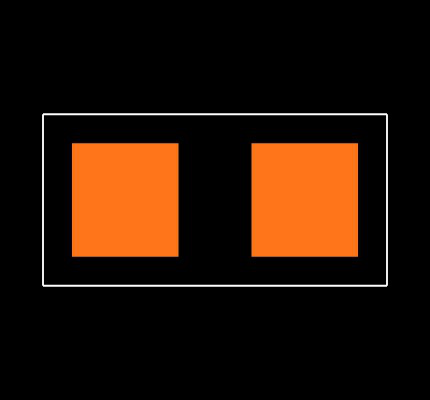

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the 06031A4R7CAT2A

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the 06031A4R7CAT2A

Part Name	06031A4R7CAT2A
Manufacturer	AVX
Category	Electronic Components
RoHS	True
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Datasheet	See Datasheet PDF
Suppression Class	Class I
Dimensions	1.6 x 0.81 x 0.86 (mm)
Mounting Type	Surface Mount
Package Case	0603 (1608M)
Maximum Operating Temperature	+125 (°C)
Depth	0.81 (mm)
Height	0.86 (mm)
Capacitance	4.7 (pF)
Length	1.6 (mm)
Voltage (V)	100 (V dc)
Minimum Operating Temperature	-55 (°C)
Tolerance	±0.25 (pF)
Terminal Type	Surface Mount
Dielectric	C0G

Inventory for the 06031A4R7CAT2A by AVX from major distributors.

Supplier	Quantity	Price	Purchase
RS Americas	15,989			Visit Site
