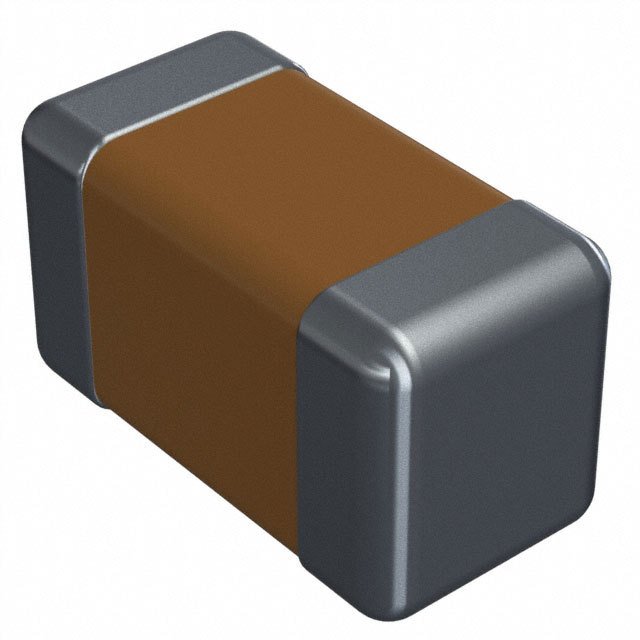

0603ZD106MAT2A
10 µF ±20% 10V Ceramic Capacitor X5R 0603 (1608 Metric)
Availability: In Stock
Package Type: 1608
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 0603ZD106MAT2A by AVX and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

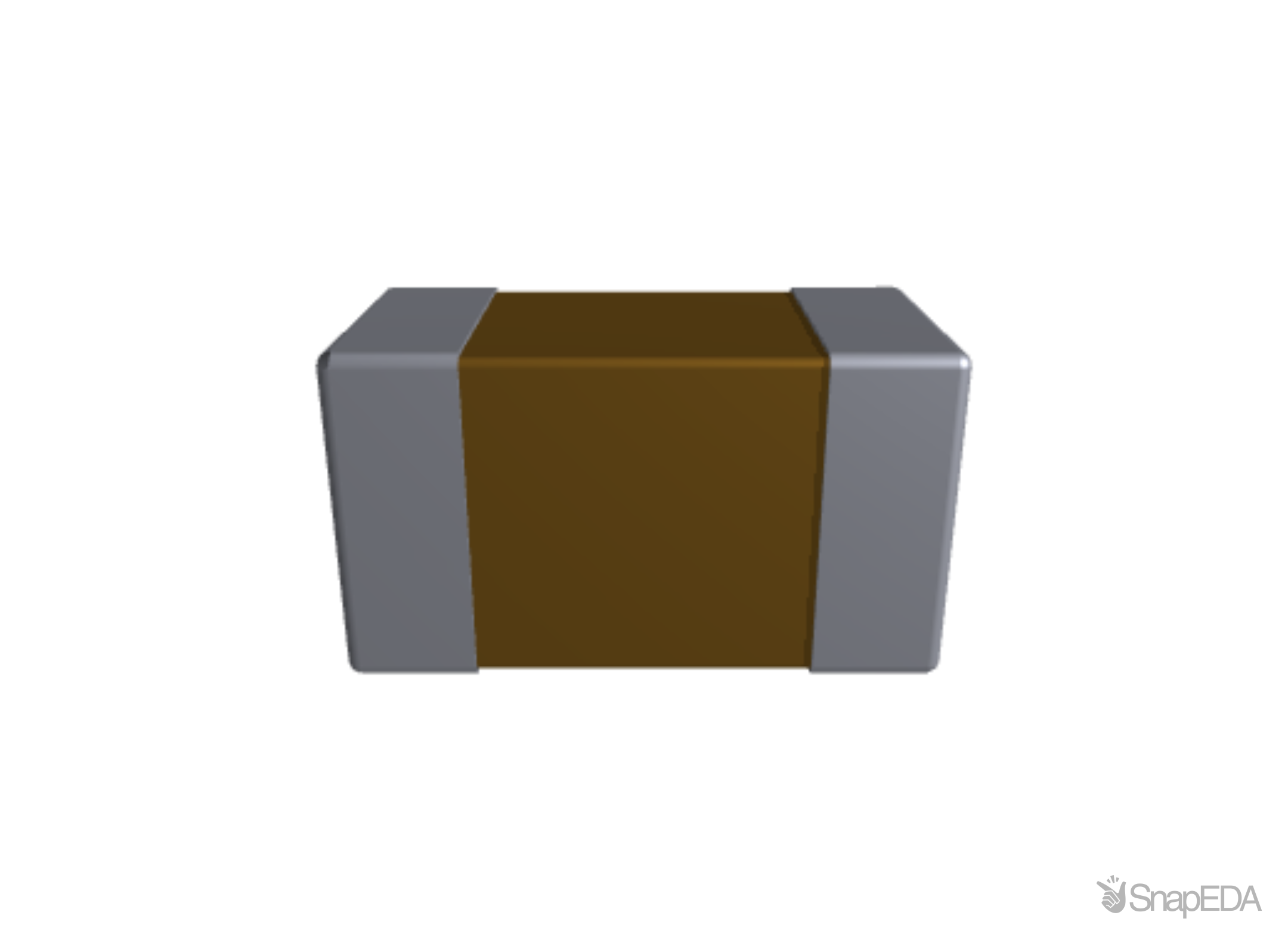

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 0603ZD106MAT2A
| Part Name | 0603ZD106MAT2A |
| Manufacturer | AVX |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Suppression Class | Class II |
| Dimensions | 1.6 x 0.81 x 0.94 (mm) |
| Mounting Type | Surface Mount |
| Package Case | 0603 (1608M) |
| Depth | 0.81 (mm) |
| Height | 0.94 (mm) |
| Capacitance | 10 (µF) |
| Length | 1.6 (mm) |
| Voltage (V) | 10 (V dc) |
| Minimum Operating Temperature | -55 (°C) |
| Maximum Operating Temperature | +85 (°C) |
| Terminal Type | Surface Mount |
