0805YD105KAT2A
Capacitor;Ceramic;Cap 1 uF;Tol 10%;Vol-Rtg 16 VDC;SMT;0805;X5R;Tape & Reel | AVX 0805YD105KAT2A
Availability: Out of Stock
Package Type: 2012
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 0805YD105KAT2A by AVX and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

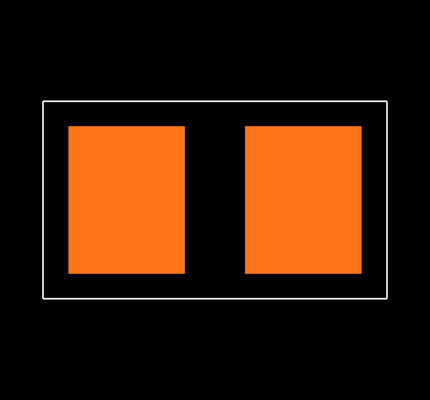

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 0805YD105KAT2A
| Part Name | 0805YD105KAT2A |
| Manufacturer | AVX |
| Category | Electronic Components |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 2.01 x 1.25 x 1.4 (mm) |
| Mounting Type | Surface Mount |
| Package Case | 0805 (2012M) |
| Tolerance | ±10 (%) |
| Length | 2.01 (mm) |
| Terminal Type | SMT |
| Capacitance | 1 (µF) |
| Depth | 1.25 (mm) |
| Voltage (V) | 16 (V dc) |
| Minimum Operating Temperature | -55 (°C) |
| Height | 1.4 (mm) |
| Maximum Operating Temperature | +85 (°C) |
| Automotive Standard | AEC-Q200 |
| Dielectric | X5R |
No issues have been reported for the 0805YD105KAT2A
