09-65-2028

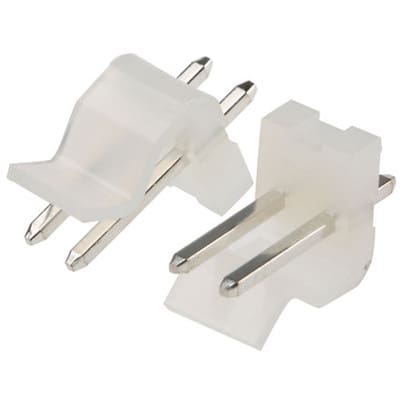

Header 3.96mm KK WTB, vert, F/lock, 2w | Molex Incorporated 09-65-2028
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 09-65-2028 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

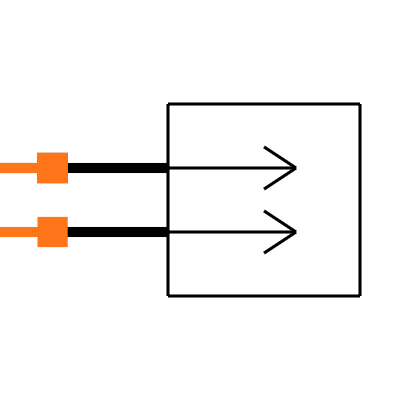

Symbol
No web preview
This Symbol is Available for

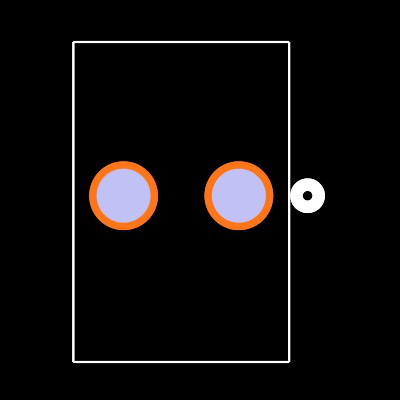

Footprint
No web preview
This Footprint is Available for

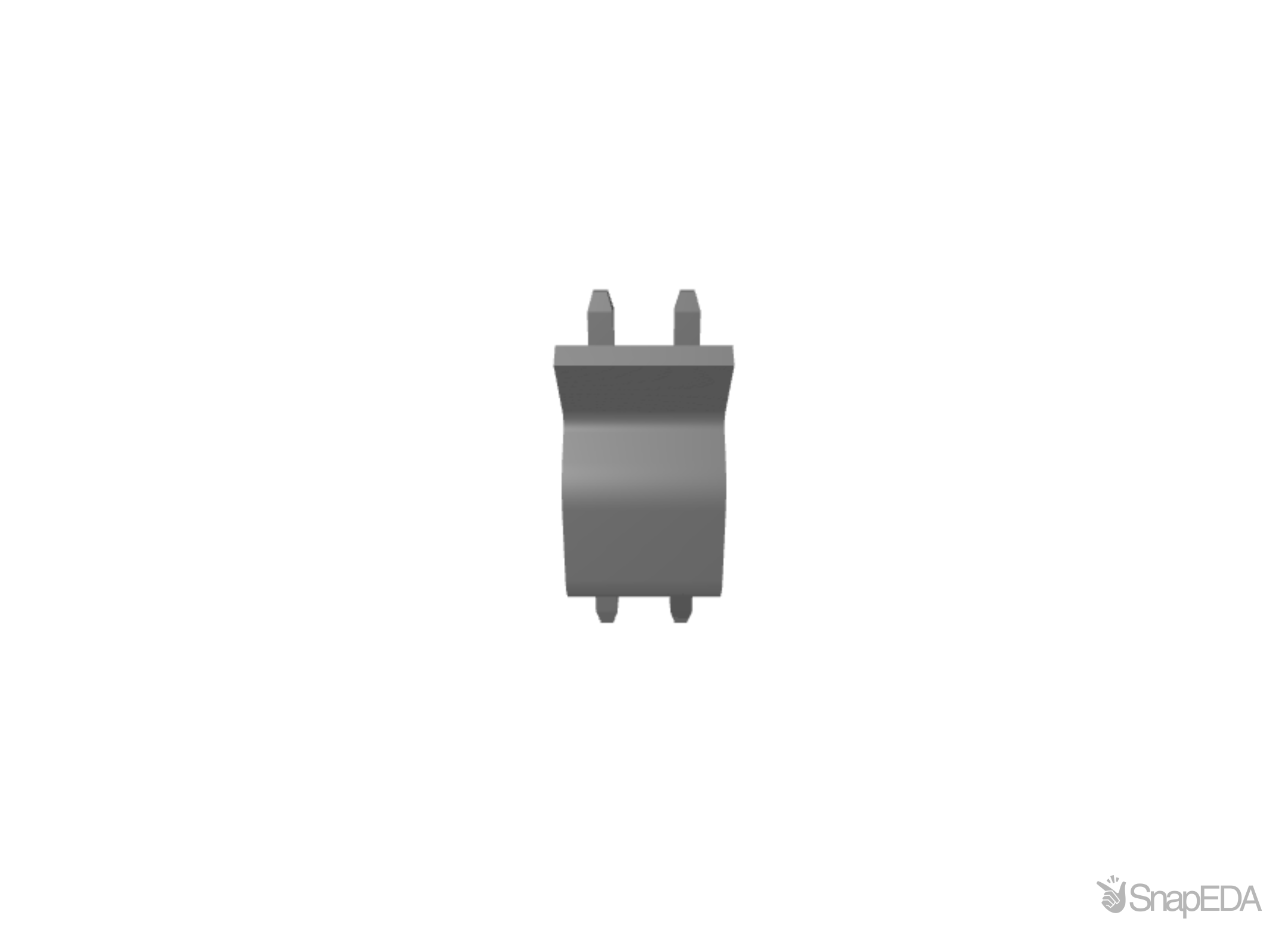

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 09-65-2028
| Part Name | 09-65-2028 |
| Manufacturer | Molex |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Contact Material | Brass |
| Tail Pin Length | 3.6 (mm) |
| Current Rating (A) | 7.0 (A) |
| Shrouded Unshrouded | Unshrouded |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 250.0 V |
| Series | KK 396 |
| Body Orientation | Straight |
| Pitch | 3.96 (mm) |
| Connector System | Wire to Board |
| Number Of Rows | 1 |
| Contact Plating | Tin |
| Termination Method | Solder |
| Number Of Contacts | 2 |
| Series Number | 5273 |
Inventory for the 09-65-2028 by Molex from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
N/A | Visit Site | |
| Avnet America |
90,278
|
|
Visit Site | |
| Chip One Stop |
19,572
|
19,572 x $0.06
|
Visit Site | |
| Compona AG |
|
12,000 x $0.07
|
Visit Site | |
| Conrad |
3,647
|
1 x $0.09
|
Visit Site | |
| Farnell UK |
157,525
|
|
Visit Site | |
| Heilind Americas |
6,375
|
|
Visit Site | |
| Newark |
8,815
|
|
Visit Site | |
| Onlinecomponents |
74,335
|
|
Visit Site | |
| Powell Electronics |
115,518
|
|
Visit Site | |
| RS UK |
1,588
|
|
Visit Site | |
| Sager |
|
|
Visit Site | |
| TME |
2,176
|
|
Visit Site | |
| TTI Europe |
56,400
|
|
Visit Site | |
| Verical |
69,785
|
|
Visit Site | |
| element14 Singapore |
9,588
|
|
Visit Site |
No issues have been reported for the 09-65-2028
