09-65-2058

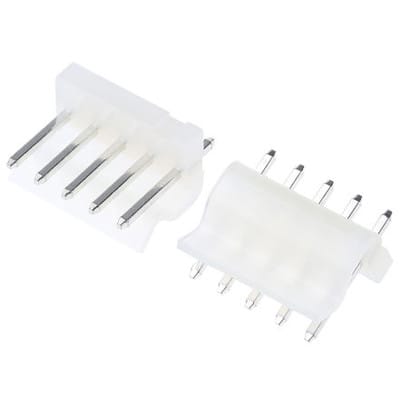

Header 3.96mm KK WTB, vert, F/lock, 5w | Molex Incorporated 09-65-2058
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 09-65-2058 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

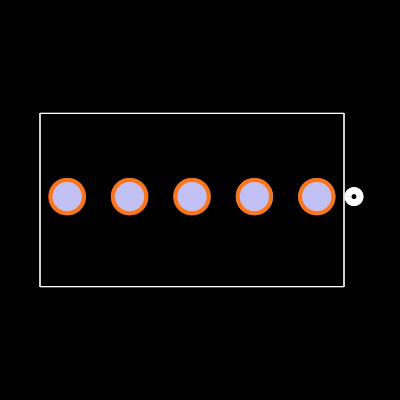

Footprint
No web preview
This Footprint is Available for

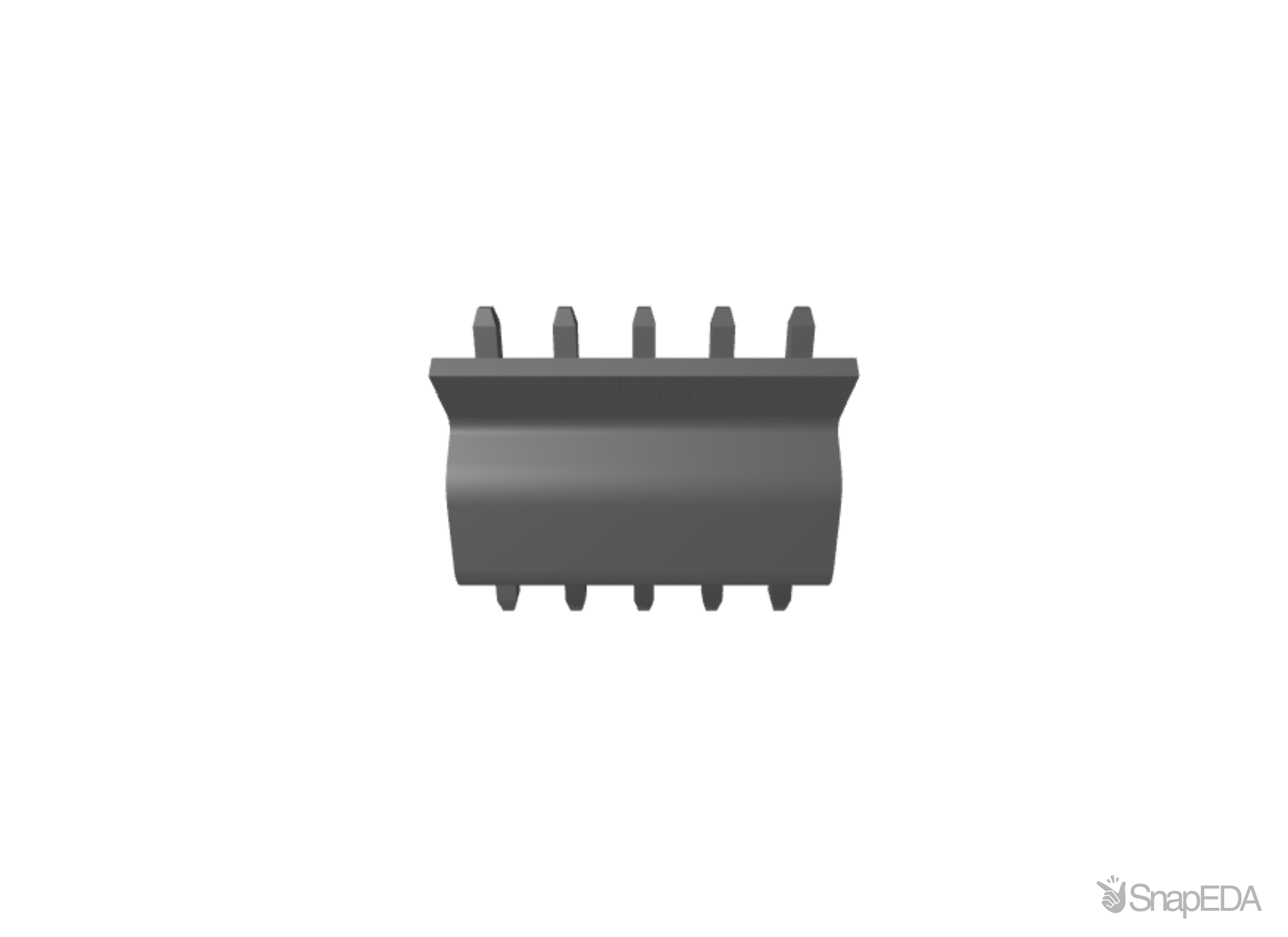

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 09-65-2058
| Part Name | 09-65-2058 |
| Manufacturer | Molex |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Shrouded/Unshrouded | Unshrouded |
| Current Rating (A) | 7.0 (A) |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 250.0 V |
| Series | KK 396 |
| Body Orientation | Straight |
| Pitch | 3.96 (mm) |
| Connector System | Wire to Board |
| Number Of Rows | 1 |
| Contact Plating | Tin |
| Termination Method | Solder |
| Contact Material | Brass |
| Number Of Contacts | 5 |
| Series Number | 5273 |
Inventory for the 09-65-2058 by Molex from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
N/A | Visit Site | |
| Avnet America |
157
|
1 x $0.18
|
Visit Site | |
| Compona AG |
|
16,000 x $0.16
|
Visit Site | |
| Conrad |
35
|
1 x $0.15
|
Visit Site | |
| Farnell UK |
1,554
|
|
Visit Site | |
| Heilind Americas |
8,829
|
|
Visit Site | |
| Interstate Connecting Components |
2,060
|
|
Visit Site | |
| Newark |
1,554
|
|
Visit Site | |
| Onlinecomponents |
70
|
|
Visit Site | |
| Rutronik |
|
10,000 x $0.18
|
Visit Site | |
| Sager |
|
|
Visit Site | |
| TTI Europe |
1,500
|
500 x $0.28
|
Visit Site | |
| Verical |
24,873
|
|
Visit Site | |
| element14 Singapore |
1,554
|
|
Visit Site |
No issues have been reported for the 09-65-2058
