09030963214

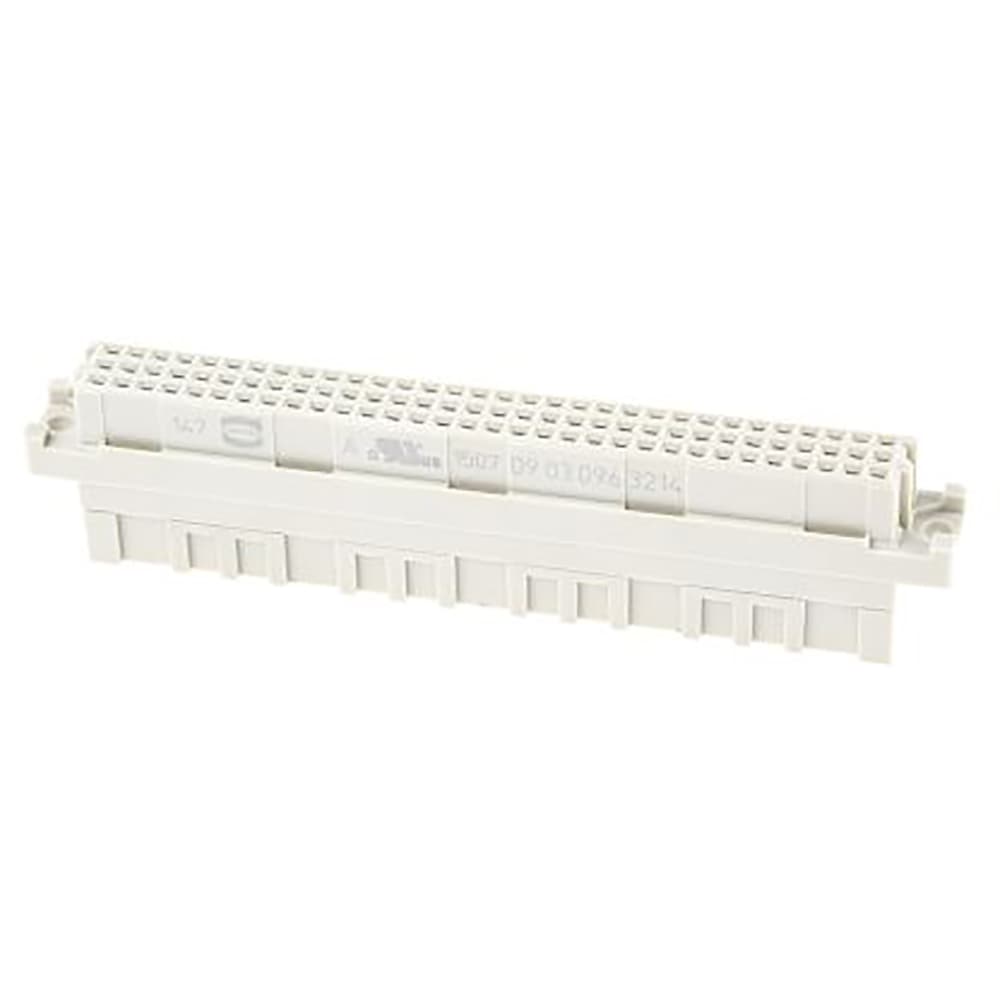

Gds A-C Series 3 Row Housing Female 96 Contacts 2 Amps | HARTING 09030963214
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 09030963214 by Harting and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 09030963214
| Part Name | 09030963214 |
| Manufacturer | HARTING |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Pitch | 2.54 (mm) |
| Mounting Type | Panel Mount |
| Gender | Female |
| Body Orientation | Straight |
| Distrelec Product Id | 14396462 |
| Number Of Rows | 3 |
| Termination Method | Crimp |
| Number Of Contacts | 96 |
Inventory for the 09030963214 by Harting from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
142
|
|
Visit Site | |
|
★ Featured
|
661
|
49 x $7.08
|
Visit Site | |
| Arrow Europe |
542
|
|
Visit Site | |
| RS Americas |
148
|
|
Visit Site | |
| Verical |
542
|
|
Visit Site |
No issues have been reported for the 09030963214
If you experienced any issues with this part, please report it.
