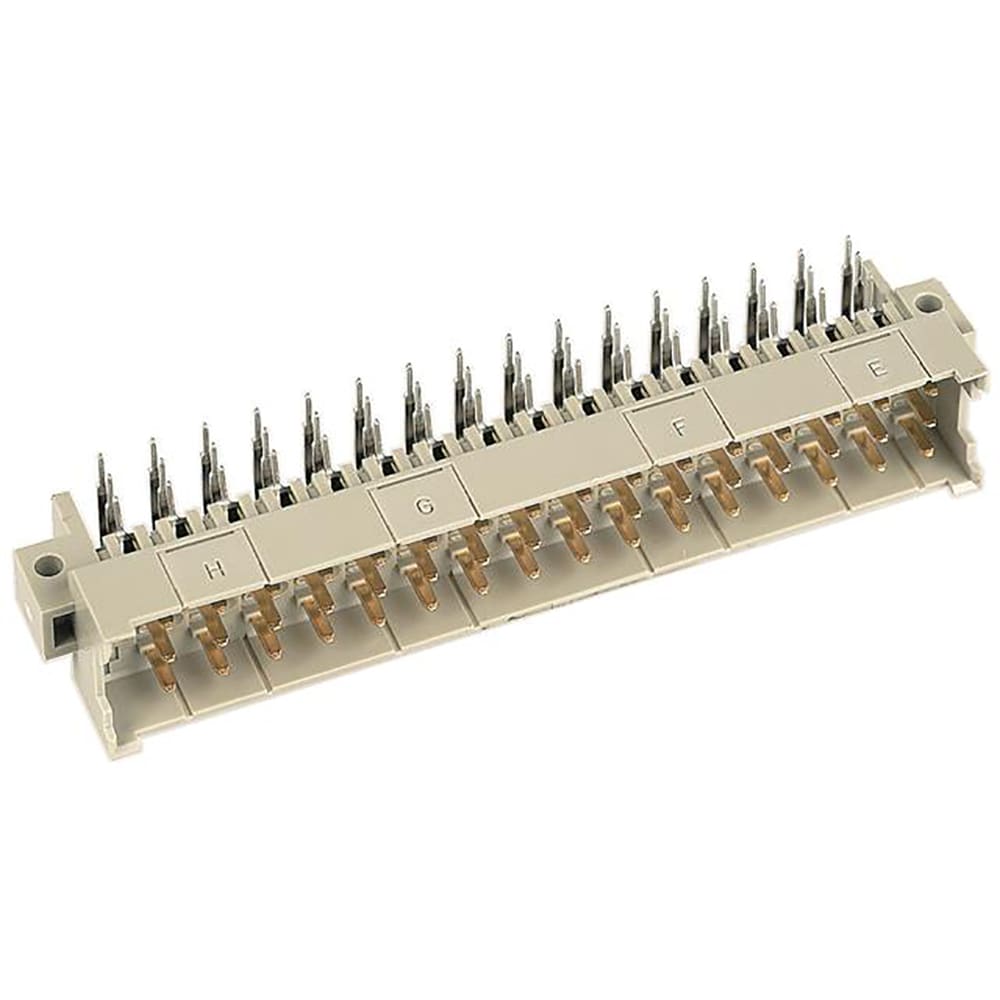

Connector Gds A-D Series 5 mm 87.5 mm L x 14.8 mm W x 22.1 mm H 48 IEC | HARTING 09061486901
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 09061486901 by Harting and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 09061486901
| Part Name | 09061486901 |
| Manufacturer | HARTING |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Series | DIN 41612 |
| Current Rating (A) | 6 (A) |
| Minimum Operating Temperature | -55 (°C) |
| Gender | Male |
| Body Orientation | Right Angle |
| Housing Material | Thermoplastic |
| Contact Plating | Gold |
| Pitch | 2.54 (mm) |
| Number Of Contacts | 48 |
| Maximum Operating Temperature | +125 (°C) |
| Contact Material | Copper Alloy |
