1-102387-4
08 MODIV HSG COMP DR .100 POL | TE Connectivity 1-102387-4
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-102387-4 by TE Connectivity AMP Connectors and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

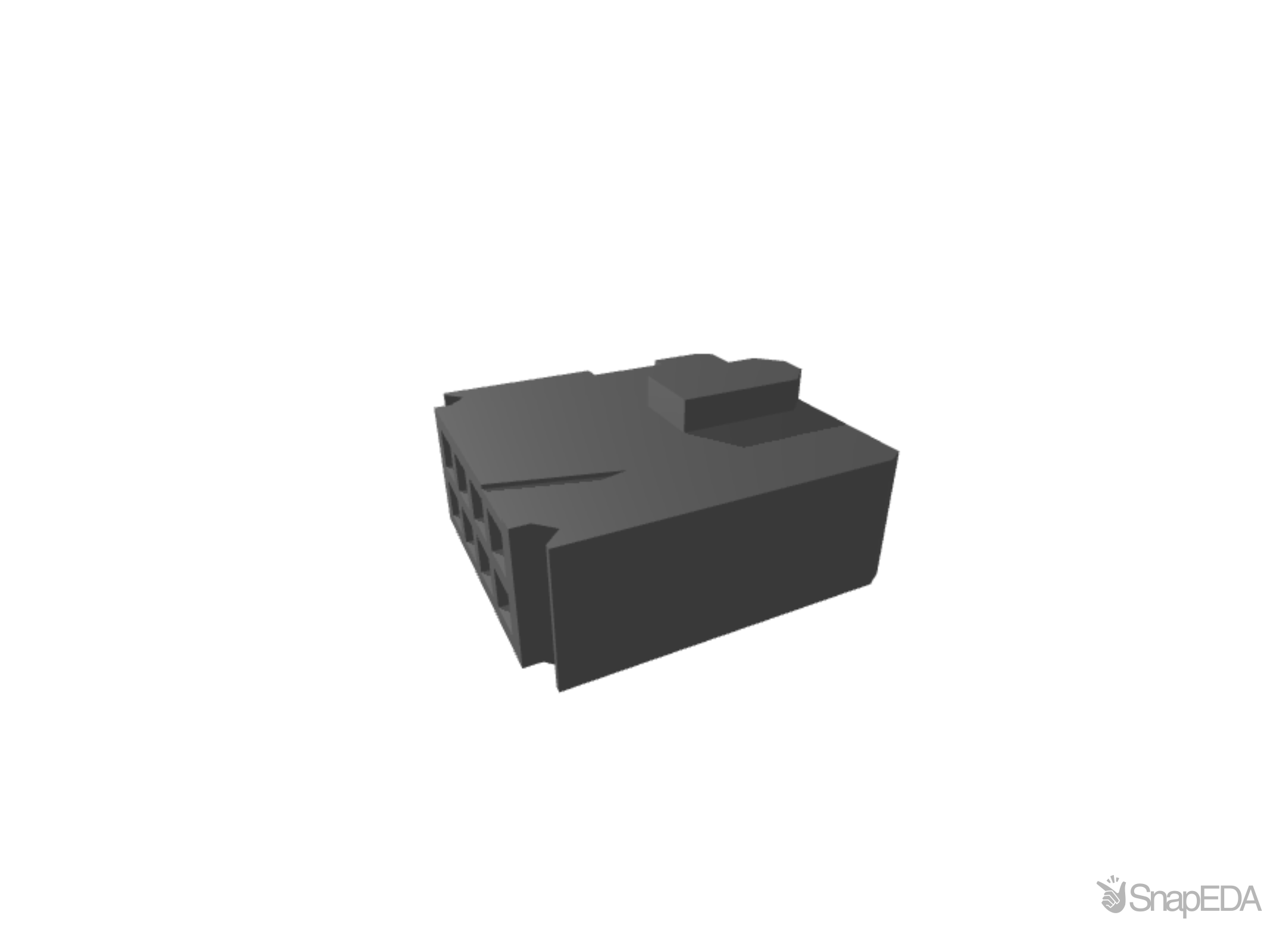

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-102387-4
| Part Name | 1-102387-4 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Mating Alignment Type | Center |
| Centerline (Pitch) | 2.54 |
| Dielectric Withstanding Voltage (V) | 750 V |
| Housing Entry Configuration | Both Ends Closed |
| Housing Material | Thermoplastic |
| Insulation Resistance | 5000 |
| Flame Retardant | Yes |
| Operating Voltage (V) | 250 VAC |
| For Use With | Header |
| Connector Style | Receptacle |
| Number of Positions | 8 |
| TE Internal Number | 1-102387-4 |
| Connector & Contact Terminates To | Wire & Cable |
| Termination Method to Wire & Cable | Crimp |
| Number of Rows | 2 |
| Housing Color | Black |
| Termination Resistance | 12 |
| Strain Relief | Without |
| Operating Temperature Range | -65 – 105 |
| Packaging Method | Package |
| Connector Type | Housing |
| Packaging Quantity | 1 |
| Length | 12.7 |
| Mating Alignment | With |
| Approved Standards | CSA LR7189 |
| Contact Base Material | Beryllium Copper |
| Stamped | No |
| UL Flammability Rating | UL 94V-0 |
| Height | .285 |
| Row-to-Row Spacing | 2.54 |
| Contact Current Rating (Max) (A) | 3 |
| Contact Type | Socket |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| Mating Connector Lock | Without |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
