1-104071-7
40 SYSTEM 50 HDR SRST SHRD
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-104071-7 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

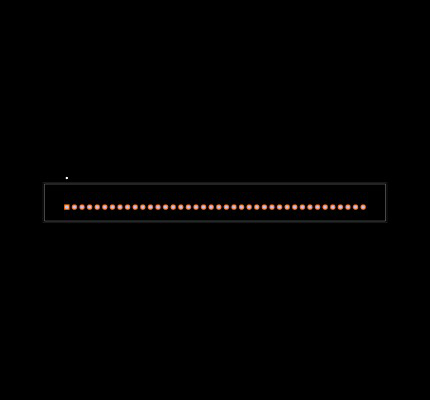

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-104071-7
| Part Name | 1-104071-7 |
| Manufacturer | TE Connectivity |
| Mating Alignment Type | Polarization |
| Centerline (Pitch) | .05 |
| Contact Protection | With |
| Dielectric Withstanding Voltage (V) | 500 V |
| Housing Style | 2-Sided |
| Housing Material | Thermoplastic |
| Connector & Contact Terminates To | Printed Circuit Board |
| Selectively Loaded | No |
| Mating Connector Lock Type | Detent Latching |
| Number of Positions | 40 |
| Profile | Standard |
| PCB Mount Retention | Without |
| PCB Thickness (Recommended) | 1.4 |
| Stabilizers | Without |
| Panel Mount Feature | Without |
| Board Standoff | Without |
| Mating Post Length | .1 |
| TE Internal Number | 1-104071-7 |
| PCB Mount Orientation | Vertical |
| Contact Protection Type | Shrouded |
| Number of Rows | 1 |
| Housing Color | Black |
| Header Type | Shrouded |
| Product Type | Connector |
| Contact Shape | Round |
| Termination End Plating Thickness | 150 250 |
| Connector Assembly Type | PCB Mount Header |
| Operating Temperature Range | -65 to 105 |
| Contact Base Material | Phosphor Bronze |
| Packaging Method | Box & Tube |
| Connector Type | Connector Assembly |
| Packaging Quantity | 9 |
| Keyed | No |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Gold |
| PCB Mounting Style | Through Hole |
| RoHS | N |
| Approved Standards | CSA LR7189 |
| Termination Method to Printed Circuit Board | Through Hole |
| Strain Relief | Without |
| Termination Post Length | .1 |
| Post Size | .015 |
| UL Flammability Rating | UL 94V-0 |
| Termination End Plating Material | Matte Tin-Lead |
| Row-to-Row Spacing | 2.54 |
| Contact Current Rating (Max) (A) | 1 |
| Contact Mating Area Plating Thickness | 30 |
| Voltage (V) | 30 |
| Gasket | Without |
| Contact Type | Pin |
| PCB Contact Termination Area Plating Material | Tin-Lead |
| Mating Connector Lock | With |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
