1-1318301-5
3.96EP HDR ASSY 5(9)P NAT/TUBE
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-1318301-5 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

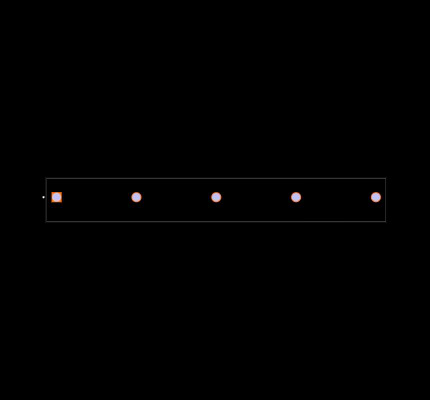

Footprint
No web preview
This Footprint is Available for

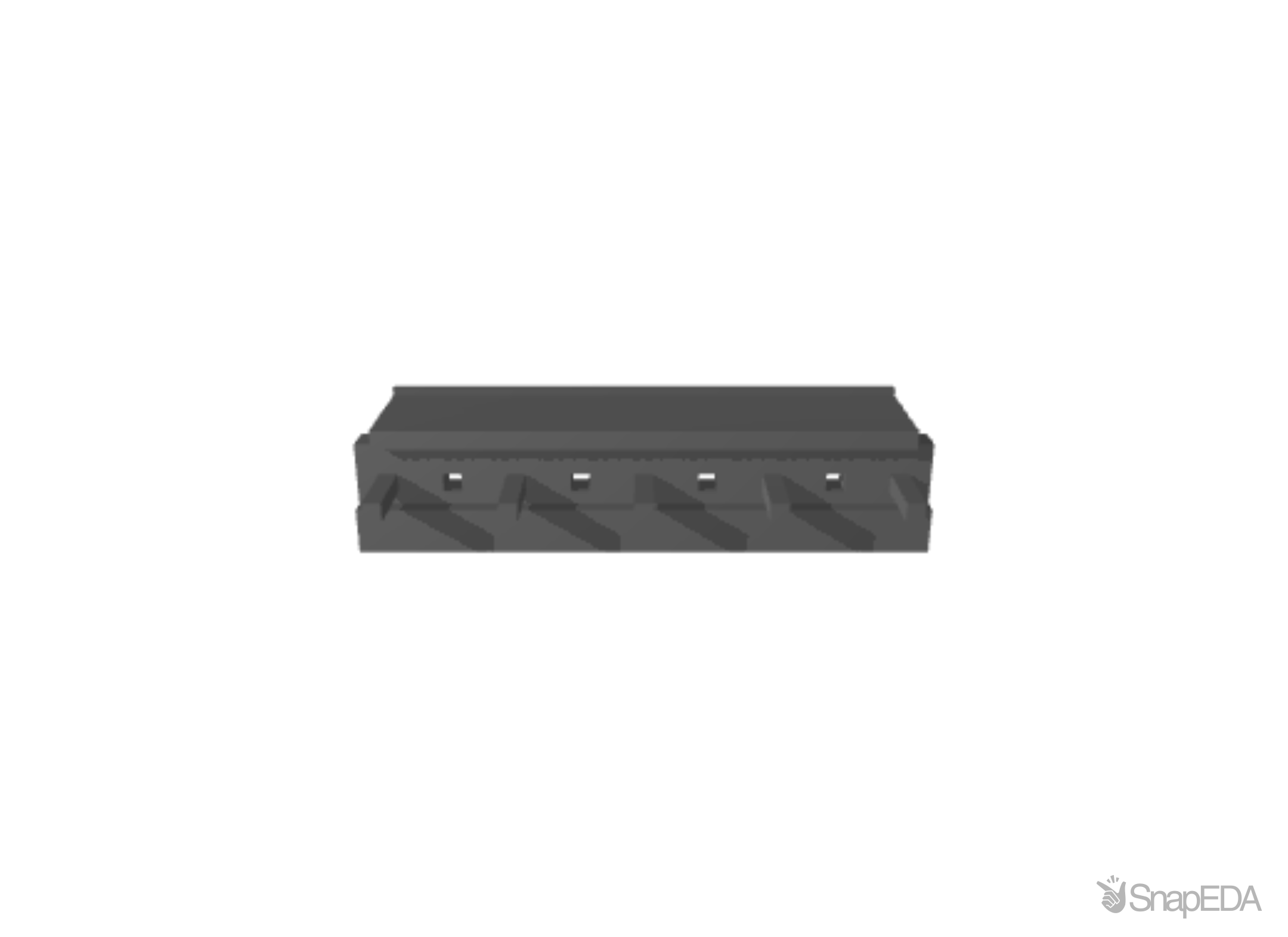

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-1318301-5
| Part Name | 1-1318301-5 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | 7.92 |
| Mating Retention Type | Latch |
| Housing Material | PBT GF |
| Operating Voltage (V) | 250 |
| Connector & Contact Terminates To | Printed Circuit Board |
| Contact Design | Square Post |
| PCB Mount Retention | Without |
| PCB Thickness (Recommended) | 1.6 |
| Termination Post & Tail Length | 3.7 |
| Contact Current Rating (Max) (A) | 7.5 |
| Mating Post Length | .3 |
| TE Internal Number | 1-1318301-5 |
| PCB Mount Orientation | Vertical |
| Connector System | Wire-to-Board |
| Connector Height | .32 |
| Number of Rows | 1 |
| Housing Color | Natural |
| Header Type | Unshrouded |
| Contact Base Material | Brass |
| Contact Shape | Square |
| PCB Contact Termination Area Plating Material Thickness | 31.49 – 70.86 |
| Contact Transmits (Typical) | Power |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Connector Length | 1.4007 |
| Connector Width | 10.7 |
| Operating Temperature Range | -25 – 105 |
| Packaging Method | Tube |
| Packaging Quantity | 13 |
| Contact Layout | Inline |
| Number of Positions | 9 |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Tin |
| RoHS | True |
| Mating Retention | With |
| Sealable | No |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| PCB Mount Alignment | Without |
| UL Flammability Rating | UL 94V-0 |
| Contact Mating Area Plating Material Thickness | .8 |
| PCB Connector Assembly Type | PCB Mount Header |
| Connector Contact Load Condition | Fully Loaded |
| Connector Profile | Low |
| Contact Type | Pin |
| PCB Contact Termination Area Plating Material | Tin |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 1-1318301-5 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
1,404 x $0.40
|
Visit Site | |
|
★ Featured
|
643
|
|
Visit Site | |
| Onlinecomponents |
22
|
|
Visit Site |
No issues have been reported for the 1-1318301-5
