1-1337604-0
SMB SMT Skt 50Ohm Gold Pltd
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-1337604-0 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

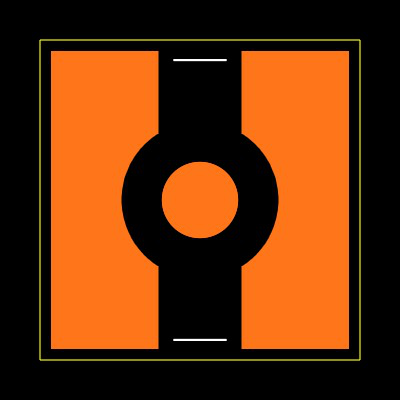

Footprint
No web preview
This Footprint is Available for

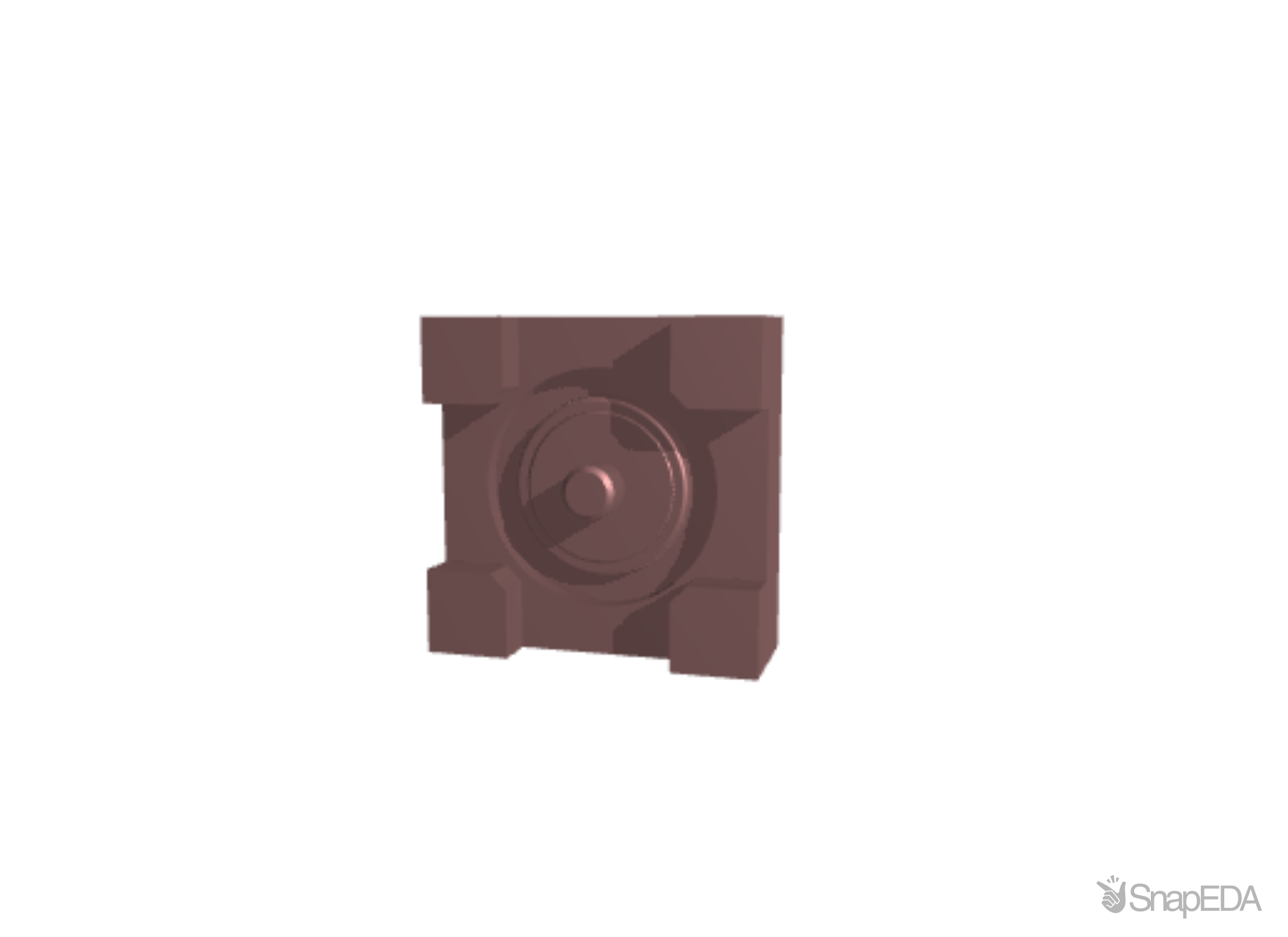

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-1337604-0
| Part Name | 1-1337604-0 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| コネクタ製品タイプ | Connector Assembly |
| RF Contact Captivation Method | Mechanical |
| Port Configuration | Single Port |
| Connector Product Type | Connector Assembly |
| Termination Method to Printed Circuit Board | Straddle Mount - Solder |
| RF Connector Style | Jack |
| RF Connector Center Contact Material | Brass |
| Dielectric Material | PTFE |
| Connector & Contact Terminates To | Printed Circuit Board |
| Part Category | Coax Connectors |
| TE Internal Number | 1-1337604-0 |
| RF Connector Coupling Mechanism | Snap-Fit |
| PCB Mount Orientation | Vertical |
| Connector System | Cable-to-Cable |
| Body Plating Material | Gold |
| Number of Coaxial Contacts | 1 |
| Number of Signal Positions | 1 |
| Impedance | 50 |
| Additional Features | Pin Protection |
| Connector Mounting Type | Board Mount |
| Product Length | 7.7 |
| RF Connector Mated Outer Diameter (Approximate) | 4.75 |
| Operating Temperature Range | -85 – 329 |
| Body Shape | Square |
| Packaging Method | Tray |
| RF Interface | SMB |
| Packaging Quantity | 100 |
| Detent | Without |
| Body Material | Brass |
| Number of Positions | 1 |
| Operating Frequency | 4 |
| RoHS | True |
| Sealable | No |
| Grade | Professional |
| RF Connector Center Contact Plating Material | Gold |
| Height Above PC Board | 7.7 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
